Brand: Hoffman
|
SKU:
EDR19FM45UCM2

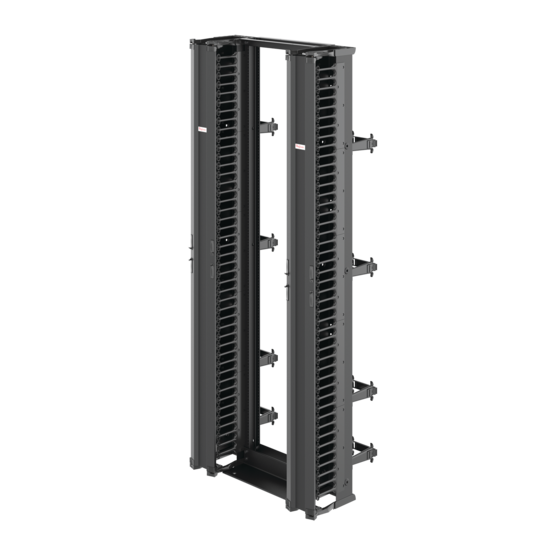

Hoffman EDR19FM45UCM2 | 2-Post Open Frame Rack With Two Cable Managers, 19 in x 45U, Black, Aluminum
Regular price
$1,776.73
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman EDR19FM45UCM2 | 2-Post Open Frame Rack With Two Cable Manag...
Regular price
$1,776.73
Unit price
Brand: Hoffman
|
SKU:
EDR19FM45UCM2
Hoffman EDR19FM45UCM2 | 2-Post Open Frame Rack With Two Cable Managers, 19 in x 45U, Black, Aluminum
Regular price
$1,776.73
Unit price
Description
Description
Designed for use in communication data centers and telecommunication rooms, 2-Post Open Frame Racks satisfy basic functional requirements for structuring cable. Racks are available in 3-inch or 6-inch column widths.
Main Features
- Range of heights from 4 feet to 9 feet (24U to 58U) to match capacity requirements; 19-inch Rack Packages are 7-feet high
- Side rails are tapped on both sides with 12-24UNC threads for quick installation
- EIA Universal 5/8 inch - 5/8 inch - 1/2 inch vertical mounting hole pattern matches industry standards
- RU markings on both front and back of uprights make it easier to mount equipment
- Packed unassembled in individual cartons; assembly hardware is furnished for convenient storage and installation
- Convenient rack and cable manager packages offered with either one or two 6-inch cable managers; includes one-piece hinged cover
Specifications
Specifications
Industry Standards
- UL 2416 Listed; File No. E230874
- cUL Listed per CSA C22.2 No. 182.4; File No. E230874
- EIA 310-D
Related Accessories
- Catalog #: A19ESOK
- Catalog #: E2PKIT
- Catalog #: ESBDK
- Catalog #: E45RUBKIT
- Catalog #: EC3S7
- Catalog #: EC3D7
- Catalog #: EC6S7
- Catalog #: EC6D7
Specifications
| Height | 84 in / 2134 mm |
|---|---|
| Width | 34.75 in / 883 mm |
| Depth | 18 in / 457 mm |
| Material | Aluminum |
| Rack Units | 45 |
| Nominal Frame Height | 7 ft. ft |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 0.14 in / 3.5 mm |
| Weight | 109 lb |
| BULLETIN NUMBER | DOFR2 |
