Brand: Hoffman
|
SKU:
324593

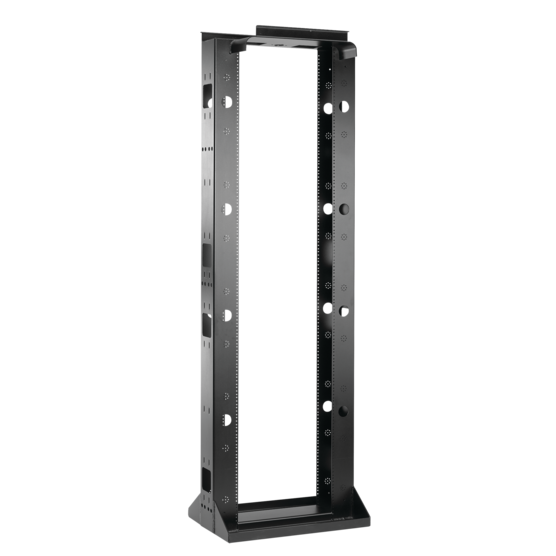

Hoffman ESDR19FM45U | Seismic 2-Post Open Frame Rack, 84.00x20.25x15.00, Black, Steel
Regular price
$2,823.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ESDR19FM45U | Seismic 2-Post Open Frame Rack, 84.00x20.25x1...
Regular price
$2,823.75
Unit price
Description
Description
Designed for applications affected by vibrations and seismic activity, Seismic 2-Post Open Frame Racks integrate cable management into a fully welded, heavy gauge steel frame. Used in communication data center and telecommunication room applications, racks can be ganged with standard 2- or 4-post racks to expand existing systems.
Main Features
- Nominal height is 7 feet (2.13 m) (45U)
- Fits 19-inch rack-mount equipment
- Side rails are tapped on both sides with 12-24 UNC threads for quick installation
- EIA Universal 5/8 - 5/8 - 1/2 inch vertical mounting-hole pattern matches industry standards and connects to most competitive racks
- Integral front waterfall top
- Pre-drilled holes on top to ease runway installation
- Top and bottom cable entry cutouts
- Ground provision with ground symbol
- Full complement of matching components for equipment and cable management
- Rack is fully welded for maximum rigidity
Specifications
Specifications
Industry Standards
- UL 2416 Listed; File No. E230874,
- 2500 lb. (1134 kg) rated load
- cUL Listed per CSA C22.2 No. 182.4; File No. E230874
- NEBS -Telcordia GR-63-CORE Zone 4: Tested with 500 lb.
- (226.8 kg) of equipment installed
- EIA 310-D
- OSHPD Pre-Approval OPM-0197-13
Specifications
| Height | 86.02 in / 2185 mm |
|---|---|
| Width | 26.75 in / 679 mm |
| Depth | 18 in / 457 mm |
| Material | Mild Steel |
| Rack Units | 45 |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 10 ga / 3.4 mm |
| Weight | 176 lb |
| BULLETIN NUMBER | DOFRS |
