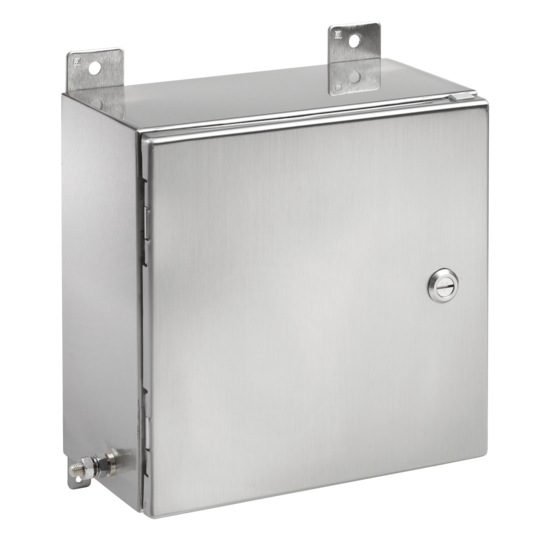

Hoffman EXE20208SS61 | Zonex ATEX- and IECEx-Certified, Type 4X, Hi...
Description
Description
Zonex Enclosures are designed and certified to meet ATEX Directive 2014/35/EU as well as IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications. HOFFMAN's ATEX Ex e enclosures are not intended for use in explosion-proof or flame-proof applications.
Intrinsically safe terminal blocks can be installed in populated non-standard enclosures.
IECEx populated enclosures require IECEx-certified components specifically listed in Certification (See IECEx SIR 09.0100 for more detail).
Main Features
- 10-mm brass internal/external bonding provision
- Type 316 stainless steel quarter-turn latch with slotted insert
- Large 3-mm-thick, flat gasketed gland plate(s)
- Continuous seal gasket on door and gland plate(s)
- Hardware for panel and bonding provisions included
- Operating temperature range: -40 C to +70 C standard polyurethane gasket
- Increased safety: Ex e. IECEx e certified
- 3-mm thick individual welded-on top and bottom wall-mounting brackets
Specifications
Specifications
Industry Standards
- Type 4, 4X, 12; File No. E61997
- cUL C22.2 No. 94 Listed; Type 4, 4X, 12; File No. E61997
- ATEX Directive 2014/34/EU
- ATEX
- Sira 09ATEX3224U
- 2813 Ex II 2 G D
Related Accessories
- Catalog #: EXWK53SS6
- Catalog #: VHL09160
Specifications
| Height | 20 in / 508 mm |
|---|---|
| Width | 20 in / 508 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 316L |
| Latch Quantity | 1 |
| Optional Panel | CP2020G |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 16 ga / 1.4 mm |
| Weight | 33.3 lb |
| BULLETIN NUMBER | HL |
Documents and Downloads
Documents and Downloads
- Hoffman EXE20208SS61 Data Sheet
- Hoffman EXE20208SS61 IECEx Certificate of Conformity, Type ATEX ABC SS61/SPL and EXE ABC SS6/SPL Range of Enclosures
- Hoffman EXE20208SS61 EU-Type Examination Certificate, Type ATEX ABC SS61/SPLand EXE ABC SS6/SPLRange of Enclosures
- Hoffman EXE20208SS61 Declaration of Compliance
- Hoffman EXE20208SS61 Zonex, ATEX, IECEx, Type 4X, Hinged, 316SS, EXE Design Instruction Manual
