Brand: Hoffman
|
SKU:
652110

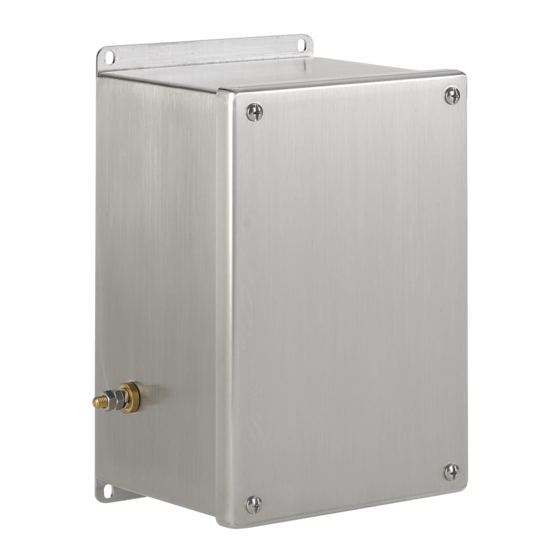

Hoffman EXE443SS6 | Zonex ATEX- and IECEx-Certified, Type 4X, Screw Cover, 4x4x3, 316 SS
Regular price
$760.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman EXE443SS6 | Zonex ATEX- and IECEx-Certified, Type 4X, Screw...
Regular price
$760.28
Unit price
Description
Description
Zonex Enclosures are designed and certified to meet ATEX Directive 2014/35/EU as well as IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications. HOFFMAN's ATEX Ex e enclosures are not intended for use in explosion-proof or flame-proof applications.
Main Features
- 6 mm brass internal/external bonding provision
- One piece continuous gasket on door
- Type 316L stainless steel cover screws
- Mounting panel and hardware for bonding provisions included
- Operating temperature range: -40 C to +70 C standard polyurethane gasket
- Internal weldstuds for panel or DIN rail mounting brackets
- 3-mm thick individual welded-on top and bottom wall-mounting brackets
- Increased safety: Ex e. IECEx e certified
Specifications
Specifications
Industry Standards
- Type 4, 4X, 12; File No. E61997
- cUL C22.2 No. 94 Listed; Type 4, 4X, 12; File No. E61997
- ATEX Directive 2014/34/EU
- ATEX
- Sira 09ATEX3224U
- 2813 Ex II 2 G D
Related Accessories
- Catalog #: A4P4G
- Catalog #: EXWK53SS6
- Catalog #: VHL09160
Specifications
| Height | 4 in / 102 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 3 in / 76 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 316L |
| Optional Panel | A4P4G |
| Panel | 73 x 73 mm / 2.88 x 2.88 in |
| Color | Unpainted |
| Finish | Brushed 320 grain |
| Thickness | 16 ga / 1.4 mm |
| Weight | 2.4 lb |
| BULLETIN NUMBER | HL |
