Hoffman EXWK2315SS6 | Hazardous Location Window Kits, 25.50x17.50x1.43, SS Type 316
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman EXWK2315SS6 | Hazardous Location Window Kits, 25.50x17.50x1...
Description
Description

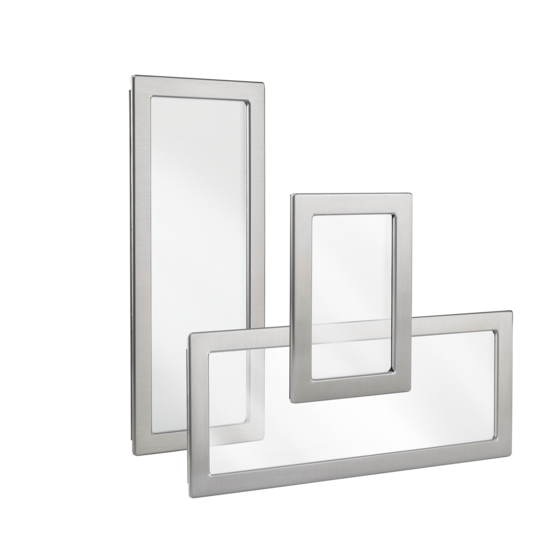

Hazardous Location Window Kits are designed to be used on Increased Safety (Ex e) enclosures in ATEX or IECEx Zone 1 or 2 hazardous areas. These window kits ensure a dust-, oil-, and water-tight seal. Designed for use as viewing windows, these window kits are ideal for visibility of internal enclosure components. The windows are easily installed by making a cutout in the enclosure and attaching the window and frame with included mounting hardware.
Main Features
- Secure sealing with silicon gasket to protect against water and dust ingress in high-temperature applications
- Maintain visual on components through .25-in. (6-mm) tempered safety glass
- Easy installation in enclosure cutouts with window frame hardware
Specifications
Specifications
Industry Standards
- UL 508A Component Recognized; Type 4, 4X,12, 3R; File No. E61997
- IECEx and ATEX Approvals
- Suitable for use on increased safety enclosures for ZONE 1 or ZONE 2 assemblies
- ATEX Directive 94/9/EC
- ATEX
Specifications
| Cutout Size | 24.69 x 16.69 in / 627 x 424 mm |
|---|---|
| Color | Unpainted |
| Finish | Brushed |
| Material | Stainless Steel 316L |
| Thickness | 14 ga / 1.98 mm |
| Weight | 16 lb |
| BULLETIN NUMBER | HLY |
Documents and Downloads
Documents and Downloads
- Hoffman EXWK2315SS6 IECEx Certificate of Conformity, Type Range of Window Kit Accessory
- Hoffman EXWK2315SS6 EU-Type Examination Certificate, Range of Window Kit Accessory
- Hoffman EXWK2315SS6 Declaration of Compliance
- Hoffman EXWK2315SS6 Hazardous Location Window Kits Instruction Manual
- Hoffman EXWK2315SS6 Data Sheet
