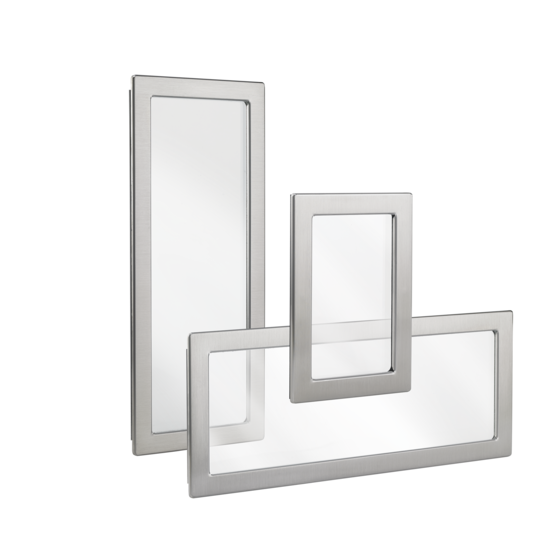

Hoffman EXWK53SS6 | Hazardous Location Window Kits, 7.50x5.50x1.43, SS Type 316
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman EXWK53SS6 | Hazardous Location Window Kits, 7.50x5.50x1.43,...
Description
Description
Hazardous Location Window Kits are designed to be used on Increased Safety (Ex e) enclosures in ATEX or IECEx Zone 1 or 2 hazardous areas. These window kits ensure a dust-, oil-, and water-tight seal. Designed for use as viewing windows, these window kits are ideal for visibility of internal enclosure components. The windows are easily installed by making a cutout in the enclosure and attaching the window and frame with included mounting hardware.
Main Features
- Secure sealing with silicon gasket to protect against water and dust ingress in high-temperature applications
- Maintain visual on components through .25-in. (6-mm) tempered safety glass
- Easy installation in enclosure cutouts with window frame hardware
Specifications
Specifications
Industry Standards
- UL 508A Component Recognized; Type 4, 4X,12, 3R; File No. E61997
- IECEx and ATEX Approvals
- Suitable for use on increased safety enclosures for ZONE 1 or ZONE 2 assemblies
- ATEX Directive 94/9/EC
- ATEX
Related Accessories
- Catalog #: ATEX262616SS61
- Catalog #: ATEX262616SS63
- Catalog #: ATEX262620SS61
- Catalog #: ATEX262620SS63
- Catalog #: ATEX303016SS61
- Catalog #: ATEX303016SS63
- Catalog #: ATEX303020SS61
- Catalog #: ATEX303020SS63
Specifications
| Cutout Size | 6.69 x 4.69 in / 170 x 119 mm |
|---|---|
| Color | Unpainted |
| Finish | Brushed |
| Material | Stainless Steel 316L |
| Thickness | 14 ga / 1.98 mm |
| Weight | 2.5 lb |
| BULLETIN NUMBER | HLY |
