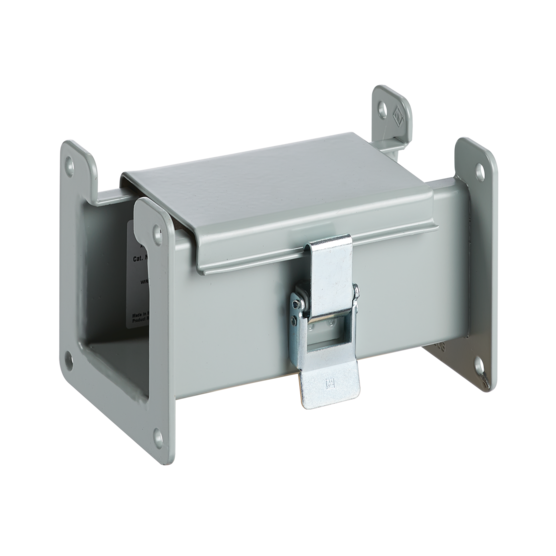

Hoffman F22L06 | Straight Section, Lay-in Hinged-Cover, Type 12, 2.50x2.50x6.00, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman F22L06 | Straight Section, Lay-in Hinged-Cover, Type 12, 2....
Description
Description
Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.
Each sealing plate also includes one gasket and one set of screws to join sections.
Certified by Canadian Standards Association.
Main Features
- Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
- This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: F44L60
- Catalog #: F44L48
- Catalog #: F44L36
- Catalog #: F44L24
- Catalog #: F44L12
- Catalog #: F44L06
Specifications
| Type | Straight Section |
|---|---|
| Height | 2.5 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Depth | 6 in / 152.4 mm |
| Protection Rating | NEMA Type 12; IP54 |
| Material | Mild Steel |
| Sealing Plate Type | Flat |
| Sealing Plate Quantity | 1 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| BULLETIN NUMBER | F10 |
