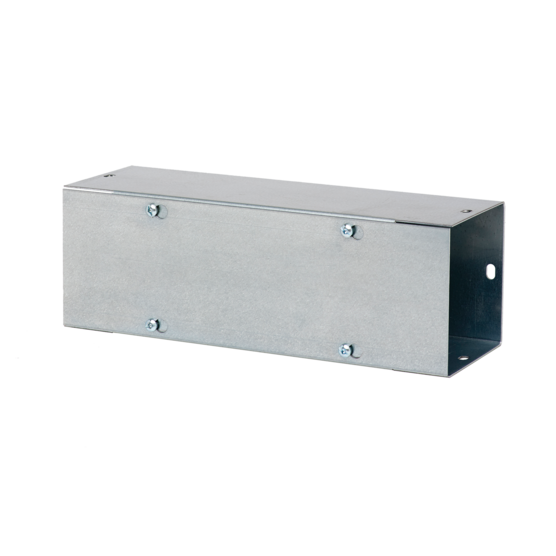

Hoffman F22T136GV | Lay-In Type 1 Galvanized Wireway Straight Section, 2.50x2.50x36.00, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman F22T136GV | Lay-In Type 1 Galvanized Wireway Straight Secti...
Description
Description
Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system. Flat cover design allows for mounting flush with walls or ceilings. Keyhole screw slots on flat covers provide easy access. Galvanized material provides superior corrosion protection for outdoor applications. Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
Main Features
- Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- Sections are completely open on one side so wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Flat cover design allows for mounting flush with walls or ceilings
- Keyhole screw slots on flat covers provide easy access. Galvanized material provides superior corrosion protection for outdoor applications
- Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
Specifications
Specifications
Specifications
| Type | Straight Section |
|---|---|
| Height | 2.5 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Depth | 36 in / 914 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Color | Unpainted |
| Finish | Galvanized |
| Thickness | 16 ga / 1.52 mm |
| Weight | 6.5 lb |
| BULLETIN NUMBER | F40G |
