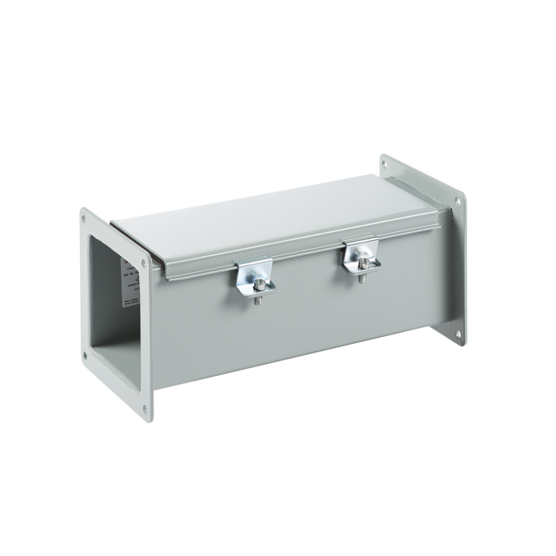

Hoffman F22W60 | Feed-Through, Type 12 Wireway Straight Section, 2.50x2.50x60.00, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman F22W60 | Feed-Through, Type 12 Wireway Straight Section, 2....
Description
Description
Feed-Through Hinged-Cover, Type 12 Straight Sections are used for enclosing wire and cable in wireway runs. Its dust protection features makes it suitable for a broad range of industrial applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables. Sections are available in lengths from 12 inch to 120 inch
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
Main Features
- Feed-Through Hinged-Cover, Type 12 Straight Sections are used for enclosing wire and cable in wireway runs
- Its dust protection features makes it suitable for a broad range of industrial applications
- The traditional closed-loop design has an opening on one side for easy access to wires and cables
- Sections are available in lengths from 12 inch to 120 inch
Specifications
Specifications
Specifications
| Type | Straight Section |
|---|---|
| Height | 2.5 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Depth | 60 in / 1524 mm |
| Protection Rating | NEMA Type 12; IP54 |
| Material | Mild Steel |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 20 lb |
| BULLETIN NUMBER | F20 |
