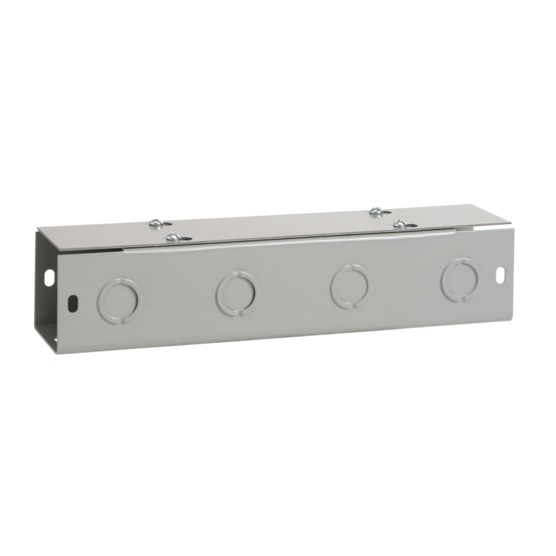

Hoffman F33T160GVP | Straight Section, Lay-in Flat-Cover, Type 1, 3.00x3.00x60.00, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman F33T160GVP | Straight Section, Lay-in Flat-Cover, Type 1, 3...
Description
Description
Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system. Flat cover design allows for mounting flush with walls or ceilings. Keyhole screw slots on flat covers provide easy access. Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
Main Features
- Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- Sections are completely open on one side so wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Flat cover design allows for mounting flush with walls or ceilings
- Keyhole screw slots on flat covers provide easy access
- Sections are available in lengths from 12 inch to 120 inch, with or without knockouts
Specifications
Specifications
Specifications
| Type | Straight Section |
|---|---|
| Height | 3 in / 76 mm |
| Width | 3 in / 76 mm |
| Depth | 60 in / 1524 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 14.77 lb |
| BULLETIN NUMBER | F40FC |
