Hoffman F44W60SS | Feed-Through Type 4X Straight Section, 4.00x4.00...
Description
Description

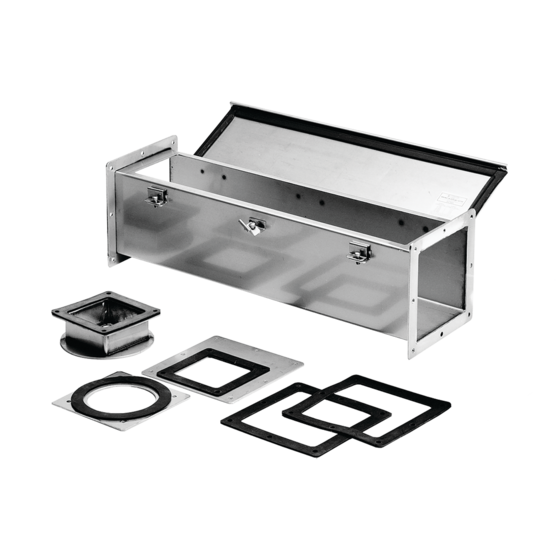

Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs. Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables. Sections are available in lengths from 12 inch to 120 inch.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
Main Features
- Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs
- Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications
- The traditional closed-loop design has an opening on one side for easy access to wires and cables
- Sections are available in lengths from 12 inch to 120 inch
Specifications
Specifications
Specifications
| Type | Straight Section |
|---|---|
| Height | 4 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Depth | 60 in / 1524 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | No. 2B |
| Thickness | 16 ga / 1.59 mm |
| Weight | 22 lb |
| BULLETIN NUMBER | F22 |
