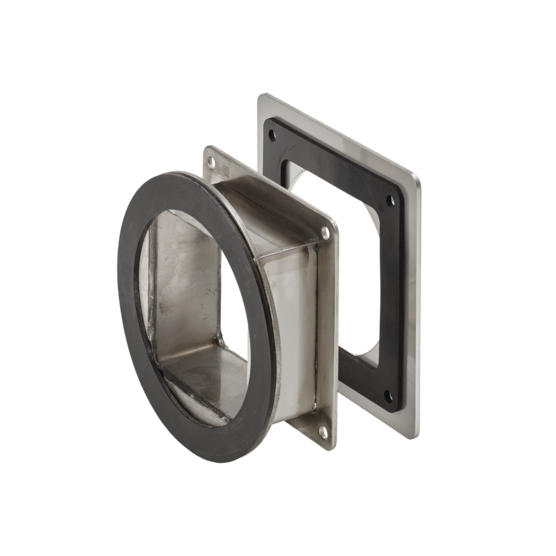

Hoffman F44WSCSS | Swivel Nipple, 4.00x4.00, SS Type 304
Description
Description
Feed-Through Swivel Nipples are used for adjusting wireway to different angles. Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure. Connects to other wireway sections and fittings and protects wires and cables in frequently hosed down, very wet or highly corrosive applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
Main Features
- Feed-Through Swivel Nipples are used for adjusting wireway to different angles
- Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure
- Connects to other wireway sections and fittings and protects wires and cables in frequently hosed down, very wet or highly corrosive applications
Specifications
Specifications
Specifications
| Type | Nipple |
|---|---|
| Height | 4 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | No. 2B |
| Thickness | 16 ga / 1.59 mm |
| Weight | 3.1 lb |
| BULLETIN NUMBER | F22 |
