Brand: Hoffman
|
SKU:
9887216

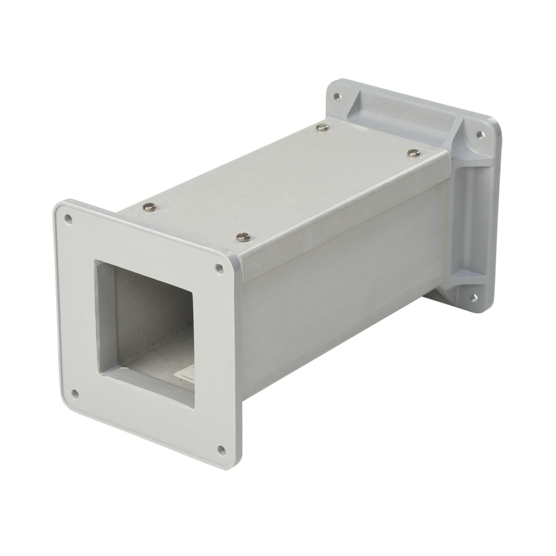

Hoffman F66W12FG | Fiberglass Feed-Through, Type 12, 3R Straight Section, 6.00x6.00x12.00
Regular price
$799.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman F66W12FG | Fiberglass Feed-Through, Type 12, 3R Straight Se...
Regular price
$799.04
Unit price
Description
Description
Feed-Through Fiberglass Hinged-Cover, Type 12, 3R Straight Sections are used for enclosing wire and cable in wireway runs. The traditional closed-loop design has an opening on one side for easy access to wires and cables. The temperature and chemically-resistant fiberglass protects in corrosive or dirty indoor or outdoor applications. Sections are available in lengths from 12 inch to 60 inch.
Main Features
- Feed-Through Fiberglass Hinged-Cover, Type 12, 3R Straight Sections are used for enclosing wire and cable in wireway runs
- The temperature and chemically-resistant fiberglass protects in corrosive or dirty indoor or outdoor applications
- Sections are available in lengths from 12 inch to 60 inch
- The traditional closed-loop design has an opening on one side for easy access to wires and cables
Specifications
Specifications
Specifications
| Type | Straight Section |
|---|---|
| Height | 6 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Depth | 12 in / 304.8 mm |
| Protection Rating | NEMA Type 12; NEMA Type 3R; IP55 |
| Material | Fiberglass |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Smooth Matte |
| Thickness | 0.12 in / 3.2 mm |
| Weight | 6.3 lb |
| BULLETIN NUMBER | F25 |
