Brand: Hoffman
|
SKU:
9887343

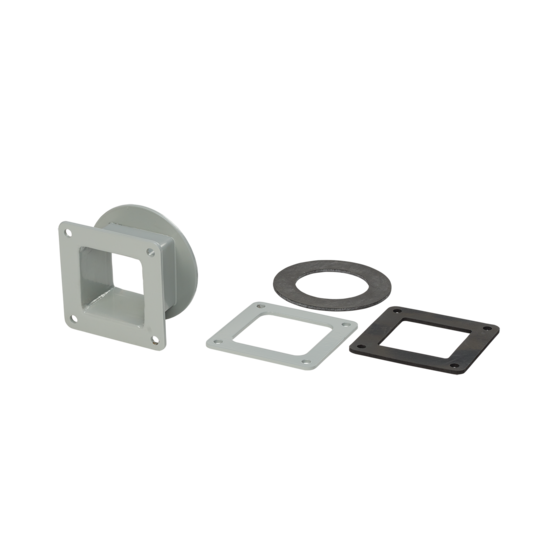

Hoffman F88WSC | Swivel Nipples, 8.00x8.00, Gray, Steel
Regular price
$572.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman F88WSC | Swivel Nipples, 8.00x8.00, Gray, Steel
Regular price
$572.17
Unit price
Description
Description
Feed-Through Swivel Nipples are used for adjusting wireway to different angles. Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure. Protects wires and cables against dust in a broad range of industrial applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
Main Features
- Feed-Through Swivel Nipples are used for adjusting wireway to different angles
- Regular type is used between adjacent wireway sections or fittings while the box entry type is used when entering an enclosure
- Protects wires and cables against dust in a broad range of industrial applications
Specifications
Specifications
Specifications
| Type | Nipple |
|---|---|
| Height | 8 in / 64 mm |
| Width | 2.5 in / 64 mm |
| Protection Rating | NEMA Type 12; IP54 |
| Material | Mild Steel |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 10.6 lb |
| BULLETIN NUMBER | F20 |
