Brand: Hoffman | SKU: 652130

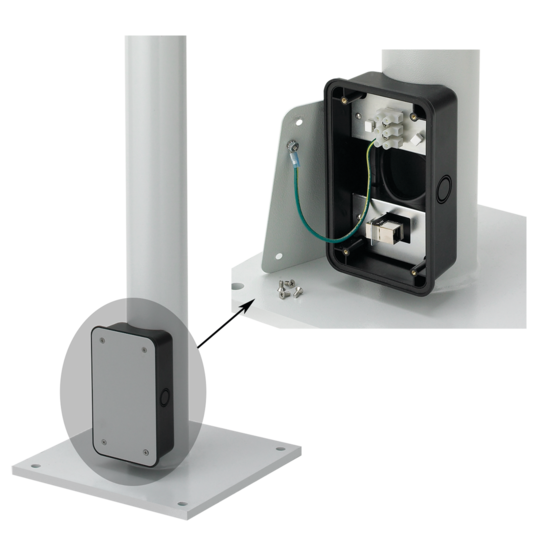

Hoffman FLOORPOST | Syspend Vertical Motion Floorpost with Junction Box, 12x12x74, Lt. Gray, Steel

$2,247.15

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Syspend Vertical Motion Floorpost with Junction Box provides a method for mounting the Syspend VL and VHD Motion Arms when a structural surface is not available. It allows for a HMI enclosure attached to the Syspend VL and VHD Motion Arms to be post-mounted.

Main Features

Heavy-wall 3.5-in. structural tube welded to a 12 x 12 x 3/8-in.-thick baseplate
Provides a "rough-in" point and pull box for power and network field wiring
Includes internal CAT5 coupler and finger-safe power terminals
Two conduit knock-outs can be opened to either 1/2 in. or 3/4 in.
Fully gasketed 16 gauge cover panel on junction box can be used for additional conduit attachment
Tough, molded ABS junction box is contoured to fit the post and is fluted into the post to protect cables

Specifications

Height	74 in / 1879.6 mm
Width	11.9 in / 302.26 mm
Depth	11.9 in / 302.26 mm
Protection Rating	NEMA Type 12; NEMA Type 4
Material	Stainless Steel 304
Color	Unpainted
Finish	Brushed
Weight	69 lb
BULLETIN NUMBER	VM4
