Hoffman HB31548 | Combination Bar, 1-Pole
Regular price
$63.25
Unit price
Brand: Hoffman
|
SKU:
652500
Regular price
$63.25
Unit price
Description
Description

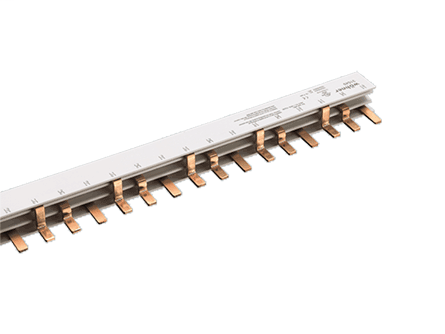

Hoffman HB31548 | Combination Bar, 1-Pole
COMB BAR 1P, Bulletin HB2 (Busbar Components - Busbar Accessories), Size/Dims: 0.63x39.37x0.59, Material: Copper
Hoffman - HB31548 - Features
- Description:
- Comb-type busbar is an alternative to point-to-point wiring on the primary side of the 10x38 and Class CC fuse holders that have an 18mm pitch. It eliminates the need for a power distribution block and wiring duct to contain the AWG wires feeding multiple fuse blocks. Available for both 1-pole and 3-phase configurations. AMBUS EasySwitch is a trademark of Whner GmbH & Co. KG
Specifications
Specifications
Hoffman - HB31548 - Product Categories
- Control & Automation
- Terminal Blocks & Connectors
- Terminal Block Accessories
- Busbars
Hoffman - HB31548 - Technical Information
| Applications | Comb-type busbar is an alternative to point-to-point wiring on the primary side of the 10x38 and Class CC fuse holders that have an 18mm pitch. It eliminates the need for a power distribution block and wiring duct to contain the AWG wires feeding multipl |
|---|---|
| Material | Copper |
| Size | 0.63x39.37x0.59 in |
| Type | Accessories for AMBUS EasySwitch, connection bottom or top |
Hoffman - HB31548 - Dimensions
| Depth | 0.5955 cm |
|---|---|
| Height | 0.62992 Inch |
| Length | 1 m |
| Width | 39.37 in |
Hoffman - HB31548 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510266318 |
| GTiN | 00783510266318 |
| Product UPC | 78351026631 |
