Brand: Hoffman | SKU: 652853

Hoffman HJ806HWLG | Flat Cover with Screws, Type 4X, 7.71x5.72x4.05, Fiberglass, Hinged

$190.72

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

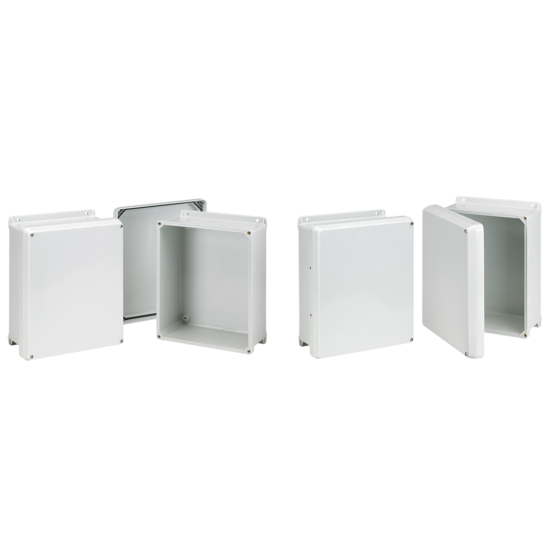

Enclosures feature a flat, overlapping cover design that ensures a more-secure seal. Available with removable and hinged covers for application flexibility.

A x B x C are internal dimensions.

Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Main Features

Compression-molded fiberglass construction
Overlapping flat, solid-covers
Cover fastens with screws
Type 304 stainless steel piano hinges on hinged models
Integral mounting brackets
Enclosures protect equipment and operators from indirect electrical contact

Specifications

Industry Standards

UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
Enclosure flammability per UL 508A
NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
IEC 60529, IP66
Meets NEMA Type 3RX requirements

Specifications

Height	7.71 in / 196 mm
Width	5.72 in / 145 mm
Depth	4.05 in / 103 mm
Protection Rating	NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66
Material	Fiberglass
Panel Size	6.75 x 4.88 in / 171 x 124 mm
Aluminum Panel	A8P6AL
Steel Panel	A8P6
Door Fasteners	Hinged, 2 screws
Color	Light Gray
Color Code	RAL 7035
Finish	Smooth Matte
BULLETIN NUMBER	HJ
