Brand: Hoffman
|
SKU:
652856
Hoffman HJB1008HWPL1LG | Flat Cover with Latches, Type 4X, 9.71x7.21x4.30, Fiberglass, Window
Regular price
$413.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman HJB1008HWPL1LG | Flat Cover with Latches, Type 4X, 9.71x7.2...
Regular price
$413.23
Unit price
Description
Description

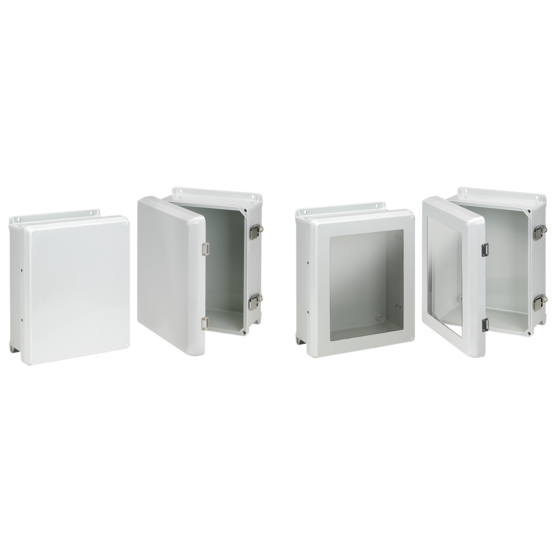

Enclosures feature a flat, overlapping cover design that ensures a more-secure seal. Available with solid and window covers. Latches provide easy access and security.
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Main Features
- Compression-molded fiberglass construction
- Overlapping solid- and window-cover models are available
- Windows are clear polycarbonate
- Cover fastens with padlockable Type 316 stainless steel latches
- Type 304 stainless steel piano hinges
- Integral mounting brackets
- Enclosures protect equipment and operators from indirect electrical contact
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
- Enclosure flammability per UL 508A
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes
Specifications
| Height | 9.71 in / 247 mm |
|---|---|
| Width | 7.21 in / 183 mm |
| Depth | 4.3 in / 109 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66 |
| Material | Fiberglass |
| Panel Size | 8.75 x 6.88 in / 222 x 102 mm |
| Window Size | 203 x 152 mm / 8.00 x 6.00 in |
| Aluminum Panel | A10P8AL |
| Steel Panel | A10P8 |
| Latch Quantity | 1 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| BULLETIN NUMBER | HJ |
