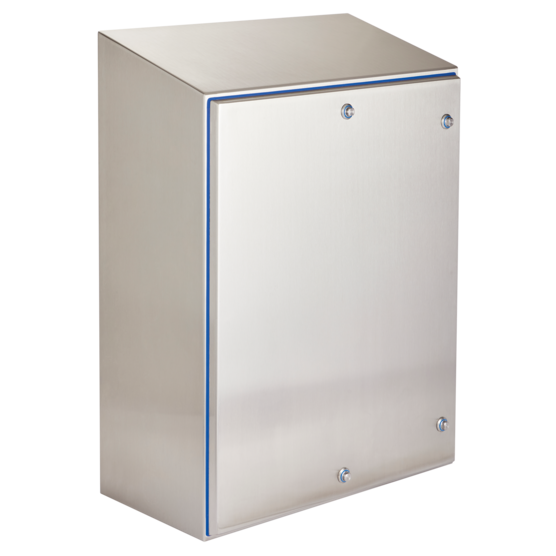

Hoffman HSDH423616SS | HyShed Hinge Cover Enclosures Type 4X, 42.00x36.00x16.00, Stainless Steel 304
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman HSDH423616SS | HyShed Hinge Cover Enclosures Type 4X, 42.00...
Description
Description
Engineered specially to withstand high pressure, high temperature sanitary washdown cleaning procedures, particularly in Food and Beverage applications that have direct and indirect food contact. The HyShed Hinge Cover enclosures feature a 15-degree sloped top to prevent fluids or particulates from pooling and maximize back panel space, an easily replaceable FDA-grade silicone gasket that helps resist bacteria growth and chemical absorption while simplifying maintenance, and a streamlined hygienic design that helps wipe out bacteria harboring catchpoints.
Main Features
- Brushed #4 finish for dairy applications
- 15-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
- Door edges are sloped to facilitate runoff
- Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
- Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systems
- Internally mounted hinges to reduce bacteria-harboring catch points
- Stainless steel crevice-free latch surfaces to reduce bacteria harboring catch points; uses standard tool to open
- Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available
- 105-degree door opening
- Self-grounding latch system with double seal
- Seams continuously welded and ground smooth
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting kit and grounding kit
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number
- E61997
- UL and cUL Classified to IEC 60529, IP66, IP69; File Number
- E503705
- Mounting brackets required to meet UL/cUL external mounting requirement.
- HOFFMAN Industrial Control Enclosures / Models HSDS##SS and HSDH##SS / HyShed Screw Cover and Hinged Cover holds a 3-A SSI
- Replacement Parts and System Component Qualification Certificate and conforms to applicable provisions of 3-A Sanitary Standard for General Requirements, ANSI/3-A 00-01-2018
- NSF 169 Special Purpose Food Equipment and Devices
Related Accessories
- Catalog #: A42P36
- Catalog #: A42P36G
- Catalog #: A42P36SS6
- Catalog #: HSDH4236GSK
- Catalog #: HSSOK2SS
- Catalog #: HSSOK4SS
Specifications
| Height | 42 in / 1067 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 16 in / 406 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66; IP69; IP69K |
| Material | Stainless Steel 304 |
| Panel | A42P36 |
| Conductive Panel | A42P36G |
| Stainless Steel Panel | A42P36SS6 |
| Latch Quantity | 7 |
| Replacement Gasket | HSDH4236GSK |
| Color | Unpainted |
| Finish | #4 Dairy |
| BULLETIN NUMBER | HS1 |
