Brand: Hoffman
|
SKU:
652919

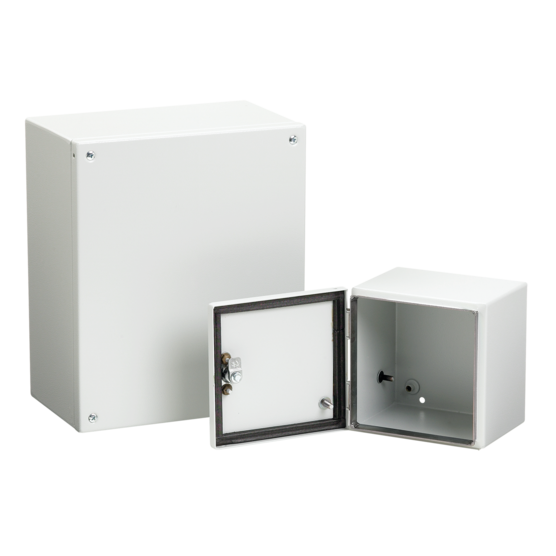

Hoffman LHC201512EMC | InLine EMC, Type 1, 200x150x120mm, Hinge Cover, Lt Gray, Steel
Regular price
$709.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman LHC201512EMC | InLine EMC, Type 1, 200x150x120mm, Hinge Cov...
Regular price
$709.00
Unit price
Description
Description
InLine EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance and EMC protection.
Purchase panels separately.
Main Features
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision on cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Shielding effectiveness greater than 50 dB at 1 GHz
- INLINE EMC Screw-Cover Enclosures:
- Captivated cover screws with sealing bushings
- Integral gasket compression stops
- INLINE EMC Hinged-Door Enclosures:
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
- Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 1; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 1; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirement.
- NEMA/EEMAC Type 1
- IEC 60529, IP40
Related Accessories
- Catalog #: LP2015
- Catalog #: LP2015G
- Catalog #: LMK15
- Catalog #: LMK20
- Catalog #: LDR3P15
- Catalog #: LDR3P20
- Catalog #: LLGK
- Catalog #: LLKDB
Specifications
| Height | 7.87 in / 200 mm |
|---|---|
| Finish | Powder Coated |
| Width | 5.91 in / 150 mm |
| Color | Light Gray |
| Depth | 4.72 in / 120 mm |
| Protection Rating | NEMA Type 1; IP54 |
| Material | Mild Steel |
| Steel Panel | LP2015 |
| Conductive Steel Panel | LP2015G |
| Panel Size | 7.13 x 5.16 in / 181 x 131 mm |
| Mounting | 7.17 x 3.35 in / 182 x 85 mm |
| Color Code | RAL 7035 |
| BULLETIN NUMBER | A53 |
