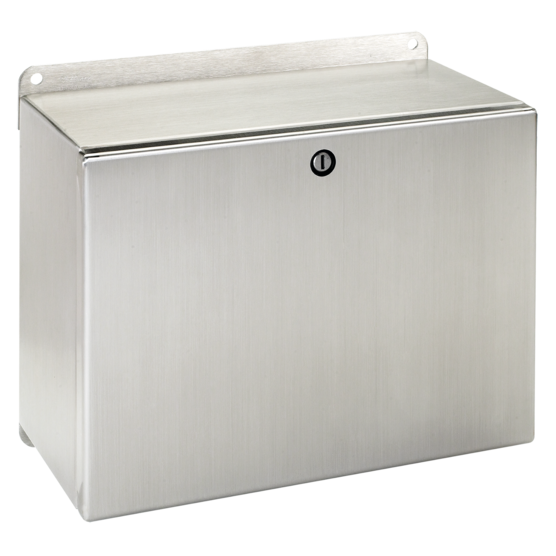

Hoffman LHC236016SS | InLine Landscape, Type 4X, 230x600x155mm, SS 304
Regular price
$1,272.97
Unit price
Brand: Hoffman
|
SKU:
652924
Regular price
$1,272.97
Unit price
Description
Description
When applications require mounting electrical components the full width of the enclosure, the landscape orientation of this aesthetic InLine Enclosure makes this possible. The full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.
Main Features
- Full width bracket for mounting flexibility
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Mounting brackets are spot-welded to top and bottom of enclosure
- Mounting brackets have predrilled mounting holes; customer-specific location holes can be drilled for mounting flexibility
- Seamless foam-in-place gasket
- M6 ground stud with base flange on body; M6 bonding provision with base flange on door
- Furnished hardware kit includes panel mounting screws and grounding hardware
- Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal
- Door opens 180 degrees
- Window door models include 3/16-in. (4.8-mm) clear polycarbonate window mounted flush with door surface
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997
- NEMA/EEMAC Type 4, 4X, 12
- CSA File Number 42186: Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050SS
Specifications
| Height | 9.06 in / 230 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 6.1 in / 155 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel | LP2360 |
| Clear Space Above Panel | 140 mm / 5.51 in |
| DIN Rail or Panel Mounting Bracket | LMK23 |
| Mounting Holes | 571 mm / 22.5 in |
| Mounting Studs | 556 mm / 21.88 in |
| Cover Style | Solid Cover |
| Conductive Panel | LP2360G |
| BULLETIN NUMBER | A54S |
