Brand: Hoffman
|
SKU:
652933

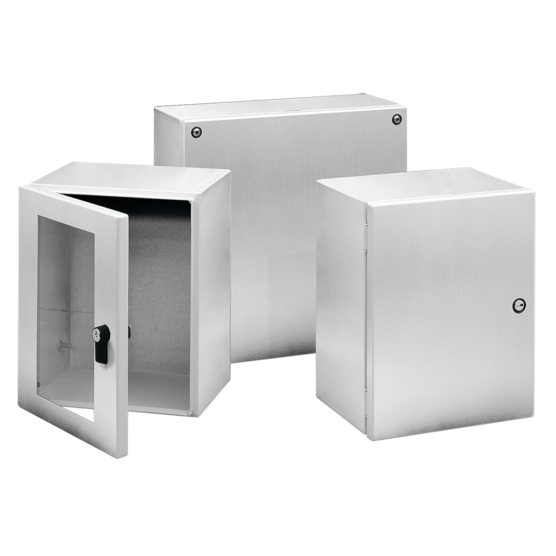

Hoffman LHC353020SS6 | InLine, Hinged Cover, 1/4 Turn Latch, Type 4X, 350x300x200mm, SS 316
Regular price
$2,201.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman LHC353020SS6 | InLine, Hinged Cover, 1/4 Turn Latch, Type 4...
Regular price
$2,201.47
Unit price
Description
Description
Aesthetic styling, flush latches and an attractive, stroked finish make InLine Enclosures an excellent choice when style and functionality are important. InLine Enclosures have an outward formed body flange to prevent contaminants from entering the enclosure and are available in three cover styles: hinged window door, hinged solid door and solid screw cover.
Purchase panels separately.
Main Features
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Fastening holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- M6 bonding provision on cover, M6 ground stud in body
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 4, 4X, 12
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050SS
Specifications
| Height | 13.78 in / 350 mm |
|---|---|
| Width | 11.81 in / 300 mm |
| Depth | 7.87 in / 200 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 316L |
| Panel Size | 13.03 x 11.06 in / 331 x 281 mm |
| Conductive Panel | LP3530G |
| Steel Panel | LP3530 |
| Mounting | 13.05 x 9.27 in / 331 x 235 mm |
| Stainless Steel Type | 316L |
| Body Thickness | 14 ga / 1.98 mm |
| Color | Unpainted |
| BULLETIN NUMBER | A54S |
