Brand: Hoffman
|
SKU:
438411

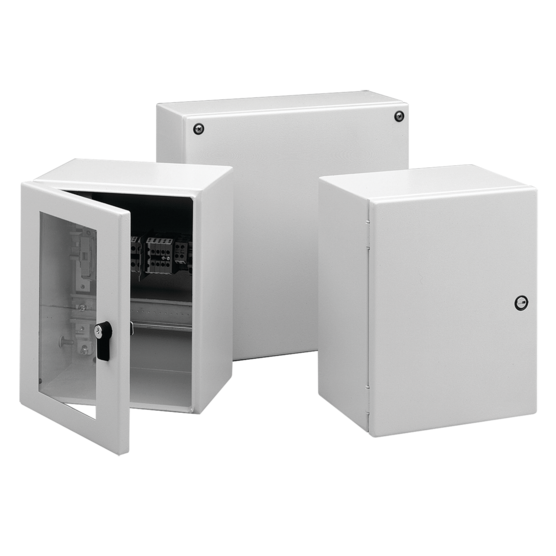

Hoffman LWC206015 | InLine Type 4, 200x600x150mm, with Window, Lt Gray, Steel
Regular price
$732.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman LWC206015 | InLine Type 4, 200x600x150mm, with Window, Lt G...
Regular price
$732.51
Unit price
Description
Description
Aesthetic styling, with an attractive, durable light-gray finish, makes InLine Enclosures an excellent choice when style and functionality are important. InLine Enclosures have an outward formed flange to prevent contaminants from entering the enclosure and are available in three versions: window door, hinged solid door and solid screw cover.
Main Features
- Metric dimensions
- 16 gauge steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3, 4, 12; File No. E61997
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 4 and 12
- CSA, File No. 42186: Type 4 and 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050
Specifications
| Height | 7.87 in / 0 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Color | Light Gray |
| Depth | 5.91 in / 150 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP55 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Window Size | 115 x 549 mm / 4.53 x 21.36 in |
| Panel | LP2060 |
| Conductive Panel | LP2060G |
| Panel Size | 7.13 x 21.06 in / 181 x 581 mm |
| Mounting | 7.15 x 21.08 in / 182 x 535 mm |
| BULLETIN NUMBER | A54 |
