Brand: Hoffman
|
SKU:
653003

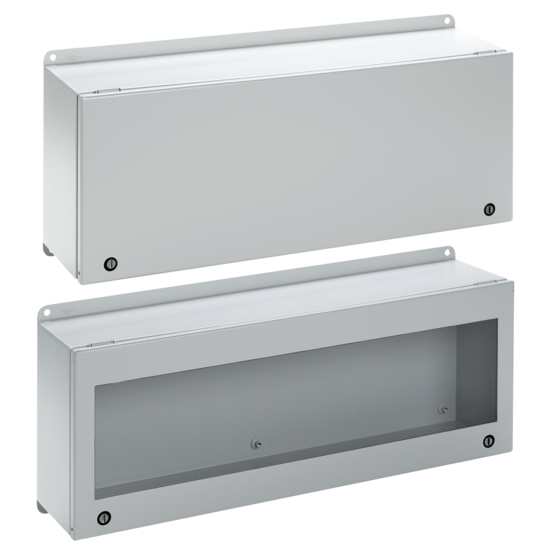

Hoffman LWC234616 | InLine Landscape, Type 4 and 12, 230x460x155mm, with Window, Lt Gray, Steel
Regular price
$534.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman LWC234616 | InLine Landscape, Type 4 and 12, 230x460x155mm,...
Regular price
$534.02
Unit price
Description
Description
When applications require mounting electrical components the full width of an enclosure, the landscape orientation of this aesthetic InLine Enclosure makes it possible. Full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.
Main Features
- Metric dimensions
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- External welded-on mounting brackets for easy installation
- Bonding provision on cover and door
- Hardware kit includes panel mounting screws and grounding hardware
- Removable hinged door
- Self-grounding, slotted quarter-turn latches
- Door opens 180 degrees
- Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
- Seamless foam-in-place gasket
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3, 4, 12; File No. E61997 (Solid Door Only)
- Solid Door Enclosures:
- NEMA/EEMAC Type 3, 4, 12
- CSA File Number 42186: Type 4, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050
- Catalog #: LMK23
- Catalog #: LP2346
- Catalog #: LP2346G
Specifications
| Height | 9.06 in / 230 mm |
|---|---|
| Finish | Powder Coated |
| Width | 18.11 in / 460 mm |
| Color | Light Gray |
| Depth | 6.1 in / 155 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Mounting Studs | 416 mm / 16.36 in |
| Clear Space Above Panel | 140 mm / 5.51 in |
| Cover Style | Window |
| Color Code | RAL 7035 |
| Thickness | 16 ga / 1.5 mm |
| BULLETIN NUMBER | A54 |
