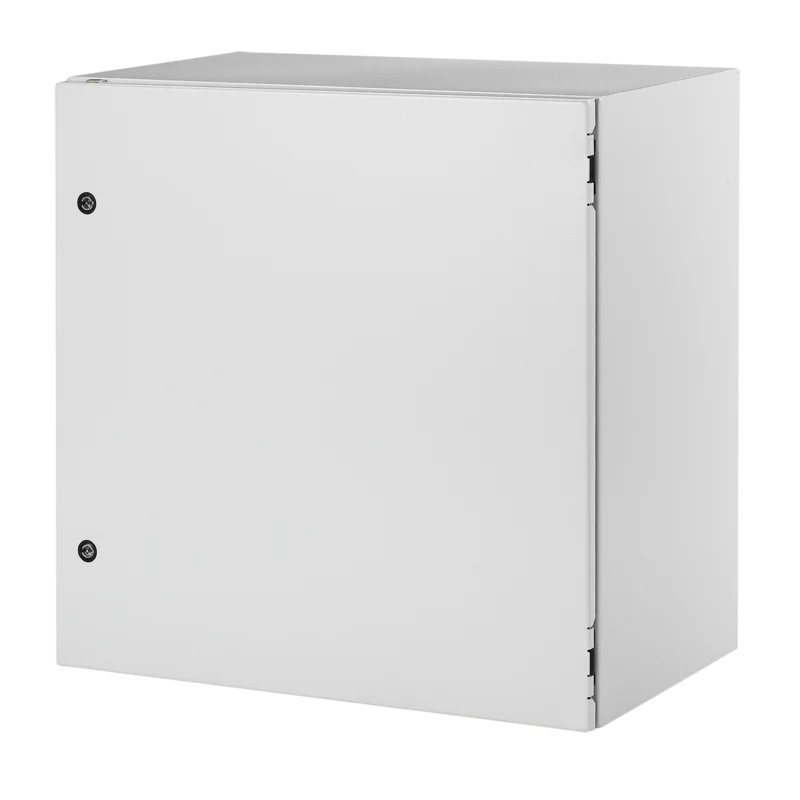

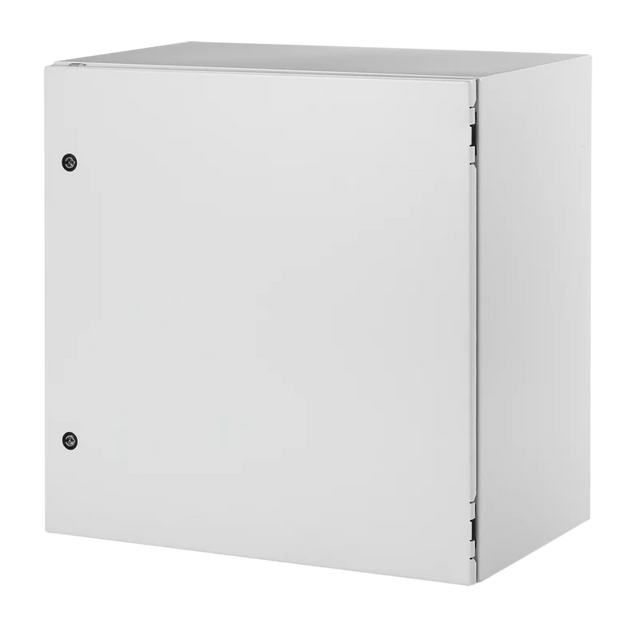

Hoffman M800600250G | Medium GL66 Series Wall-Mount Enclosures, 800x600x250mm, Lt Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman M800600250G | Medium GL66 Series Wall-Mount Enclosures, 800...
Description
Description
With streamlined styling and a durable light-gray finish, these enclosures are an excellent option when style and function are key. These enclosures are ideal for indoor or outdoor applications which require corrosion protection from chemicals and water. The enclosures contain an external body flange to prevent contaminants from entering the enclosure; a strong door with removable hinges; a conductive panel and quarter-turn latch with 3mm double-bit insert for a secure closure.
Hoffman - M800600250G - Features
- Dimensions in millimeters
- 16 gauge steel
- Quarter-turn latches furnished with 3mm double-bit insert
- Pre-cut gland plate opening(s) for cable entry in enclosure bottom
- External formed 90 degree body flange
- Three-point latching on enclosures 1000-mm high and taller
- Door alignment device on doors with three-point latching on enclosures 800 mm or wider
- Door opens 210 degrees
- Right-hand hinged door with sealed hinges and hinge brackets
- Simple, easy-to-remove and install hinge pins
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Full-size galvanized steel back panel included
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Available in Mexico and Canada only.
- Solid 2-Door models that meet IP55, Type 12 requirements: M8001000300G, M10001000300G, M12001000300G and M14001000300G.
- BULLETIN NUMBER: GL66M
Specifications
Specifications
Hoffman - M800600250G - Product Categories
- Industrial
- Wall Mounted Industrial Enclosures
- Mild Steel Wall Mounted Industrial Enclosures
Hoffman - M800600250G - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | M800600250G |
| Item Description | Medium GL66 Series Wall-Mount Enclosures, 800x600x250mm, Lt Gray, Steel |
| Height | 31.5 in / 800 mm |
| Finish | Powder Coated |
| Width | 23.62 in / 600 mm |
| Color | Light Gray |
| Depth | 9.84 in / 250 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 13; IP66 |
| Material | Mild Steel |
| Latch Type | Quarter-turn |
| Gland Plate Quantity | 2 |
| Panel Size | 755 x 555 mm / 29.72 x 21.85 in |
| Color Code | RAL 7035 |
| Thickness | 16 ga |
| Weight | 69 lb |
