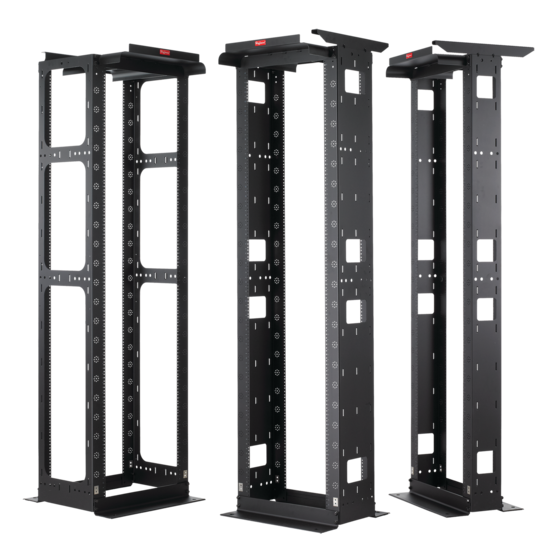

Hoffman M9616B51 | MaxRack Open Frame System, 98.13x24.00x26.25, Bl...
Regular price
$2,701.52
Unit price
Brand: Hoffman
|
SKU:
9887745
Regular price
$2,701.52
Unit price
Description
Description
MaxRack is used for mounting and securing 19- or 23-inch rack equipment that is used in data centers, telecommunication rooms and other locations. These open frame racks are ideal for high-density cabling applications. MaxRack also supports the cabling and cooling needs of large core switches (CISCO Catalyst 6509 / 6513, NEXUS 7010 and NEXUS 7018) by using the combination air baffle/vertical cable manager accessory. MaxRack, with its vast features, supports many diverse applications.
Main Features
- Rack can be assembled to accommodate either 19- or 23-inch rack equipment
- Racks can be ganged to create rows for high density applications
- 19-inch configuration equals typical tile width of 24 inch
- Flat package to allow easy shipping and handling to job site
- Press-in nuts enable single-side easy assembly
- All structural members are grounded by special grounding and bonding washers
- Top has integrated waterfall, which ensures proper cable radius is achieved
- Top and top bracket support accomodate parallel or perpendicular ladder or basket tray mounting applications
- Channel uprights provided with hole patterns to support various cable management devices
- All RU positions marked with white lettering on front and rear column members
- Easy-to-follow complete installation instructions included
- Upright channels tapped 12-24 holes per EIA Universal pattern standards
- Multiple paint-free grounding points per UL double-lugged standards
Specifications
Specifications
Industry Standards
- UL 1863 Listed; File Number E230874
- cUL Listed per CSA C22.2 No. 182.4; File No. E230874
- Cisco developer registered
- EIA 310-D
Related Accessories
- Catalog #: MAXKIT
- Catalog #: M96D18
- Catalog #: MDC16
- Catalog #: ESHD19
- Catalog #: ESHA19
- Catalog #: ESH19S
- Catalog #: ESH19V
Specifications
| Height | 98.13 in / 2493 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 26.25 in / 667 mm |
| Material | Aluminum |
| Rack Units | 51 |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 0.125 in / 3 mm |
| Weight | 47 lb |
| BULLETIN NUMBER | DMAX |
