Brand: Hoffman
|
SKU:
10078844

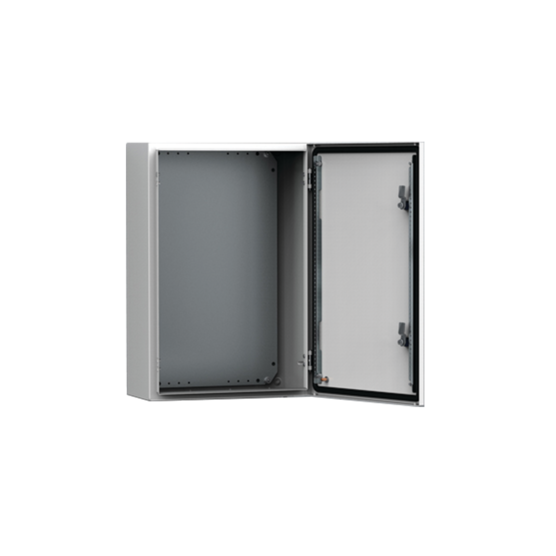

Hoffman MAS0404021R5 | Single Door Enclosure, MAS, 15.75x15.75x8.27, Lt Gray, Mild Steel
Regular price
$549.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman MAS0404021R5 | Single Door Enclosure, MAS, 15.75x15.75x8.27...
Regular price
$549.27
Unit price
Description
Description
The mild steel single door wall mounted enclosure range, MAS, with a IP 66 protection degree, is available off the shelf in many different sizes. This enclosure range is well suited for many different applications. The risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.
Main Features
- For outdoor installation, the use of a rain hood ARF and 100% polyester paint coating is recommended
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure
- Door: Surface mounted with 130-degree opening; concealed removable hinges with captive pin
- Door: Hinges can be mounted to allow left or right hand opening
- Door: inner M6 welded studs to mount door profiles MMDP
- Door: Sealing is ensured by an injected one piece polyurethane gasket
- Lock: Customized lock with double-bit for easy opening of the door
- Gland plate: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment
- Mounting plate: On the top and bottom there are holes to facilitate cable fixing
- Mounting plate: All sides, from 800 mm and above, are strengthened by folded edges
- Delivery: Enclosure with door and mounting plate; for height 600 mm and above, two door mounting profiles; gland plate(s) with gasket(s), plastic double-bit 3 mm key, mounting accessories, metallic key, for height 1000 mm and above
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12, 13; File No. E92044
- cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12, 13; File No. E92044
- NEMA/EEMAC Type 4, 12, 13
- CSA, File No. 1442951: Type 4, 12, 13
- IEC 62208 IP66
- KEMA, GOST, Lloyds, DNV, Maritime, CE
Related Accessories
- Catalog #: SFBP600
- Catalog #: SFBP800
- Catalog #: AMP04040
- Catalog #: AMG210
- Catalog #: DIP210
- Catalog #: EPF0400
- Catalog #: ADI04040R5
- Catalog #: PLC01
Specifications
| Height | 15.75 in / 400 mm |
|---|---|
| Width | 15.75 in / 400 mm |
| Depth | 8.27 in / 210 mm |
| Protection Rating | NEMA Type 4; NEMA Type 12; NEMA Type 13; IP66; IK10 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 18 ga / 1.4 mm |
| Door Thickness | 18 ga / 1.2 mm |
| With or Without Panel | With |
| Panel Size | 14.57 x 13.78 in / 370 x 350 mm |
| BULLETIN NUMBER | GW1 |
