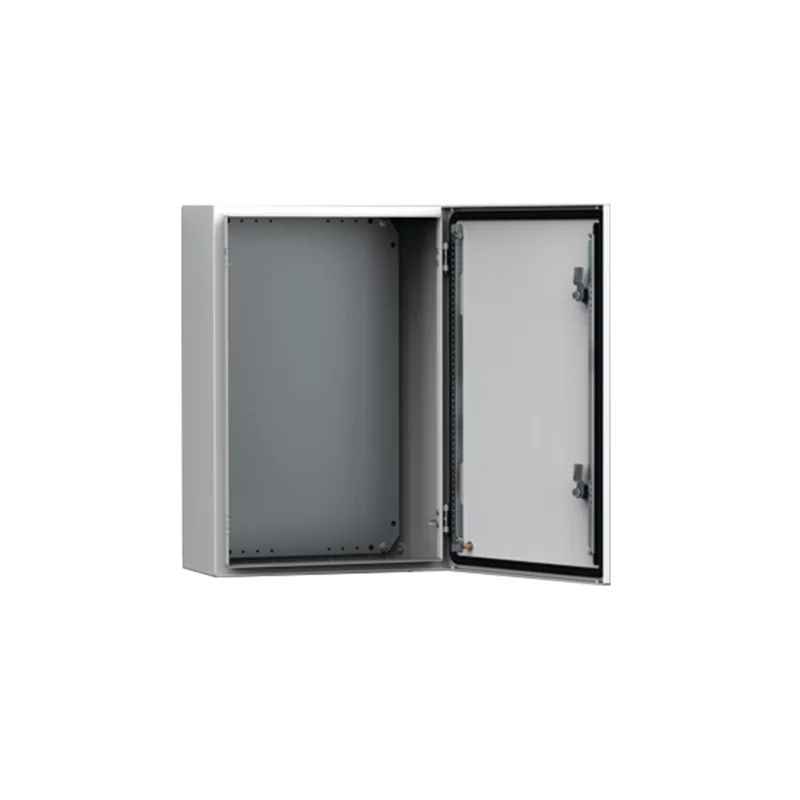

Hoffman MAS0806021R5 | Single Door Enclosure with Plate, MAS, 800x600x210mm, Light Gray, Mild Steel

Hoffman - MAS0806021R5 - Features

• Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure
• Door: Surface mounted with 130-degree opening; concealed removable hinges with captive pin
• Door: Hinges can be mounted to allow left or right hand opening
• Door: inner M6 welded studs to mount door profiles MMDP
• Door: Sealing is ensured by an injected one piece polyurethane gasket
• Lock: Customized lock with double-bit for easy opening of the door
• Gland plate: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier
• Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment
• Mounting plate: On the top and bottom there are holes to facilitate cable fixing
• Mounting plate: All sides, from 800 mm and above, are strengthened by folded edges
• Delivery: Enclosure with door and mounting plate; for height 600 mm and above, two door mounting profiles; gland plate(s) with gasket(s), plastic double-bit 3 mm key, mounting accessories, metallic key, for height 1000 mm and above
• Note: items ending in PER5 (not sold in North America region) do not include the Mounting Plate.
• BULLETIN NUMBER: GW1
• Industry Standards:
• UL 508A Listed; Type 4, 12; File No. E92044
• cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044
• NEMA/EEMAC Type 4, 12
• CSA, File No. 1442951: Type 4, 12
• IEC 62208 IP66
• KEMA, GOST, Lloyds, DNV, Maritime, CE
