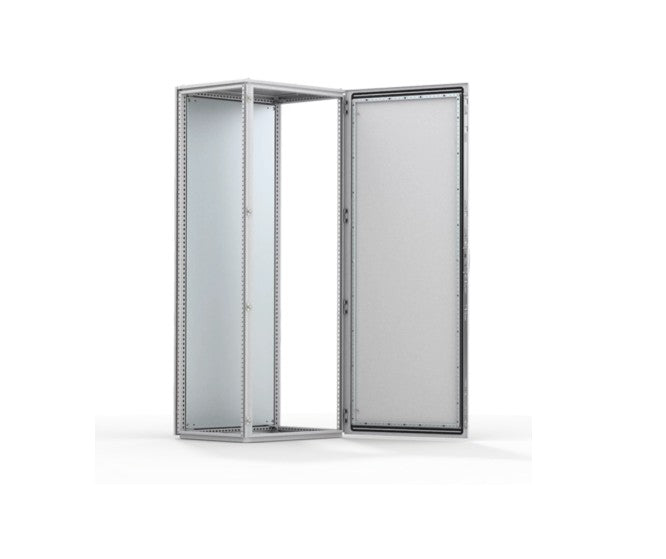

Hoffman MCS18084R5 | Modular Single Door, MCS with Plate, 1800x800x400mm, Light Gray, Mild Steel

Hoffman - MCS18084R5 - Features

• Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
• Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
• Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
• Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. RD version comes with rear door instead of rear panel.
• Side panels: Supplied as an accessory.
• Roof panel: Removable.
• Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
• Bottom plates: Consists of three or four (D>600) pieces.
• Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
