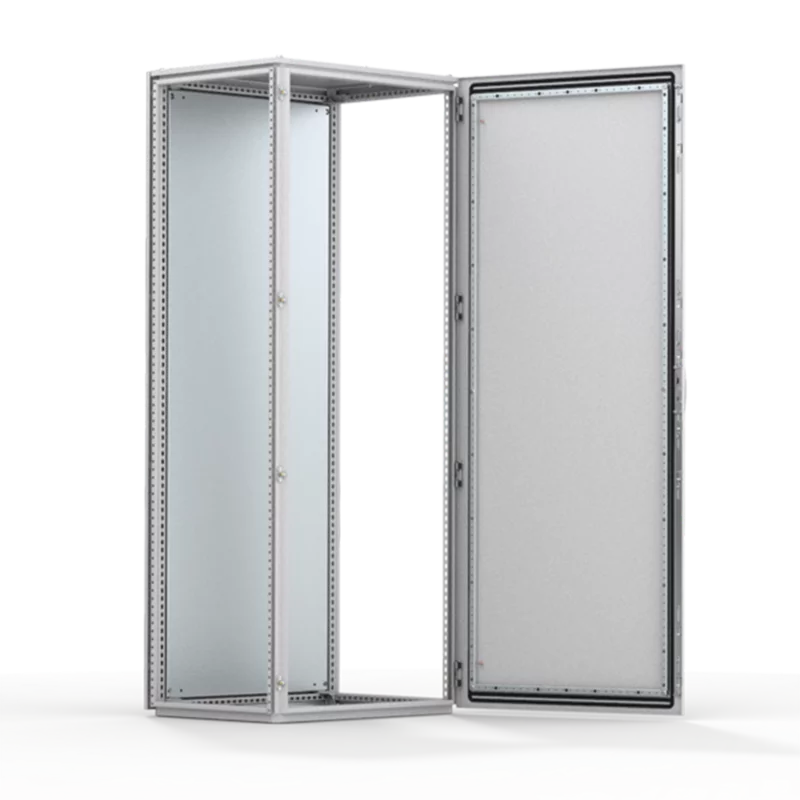

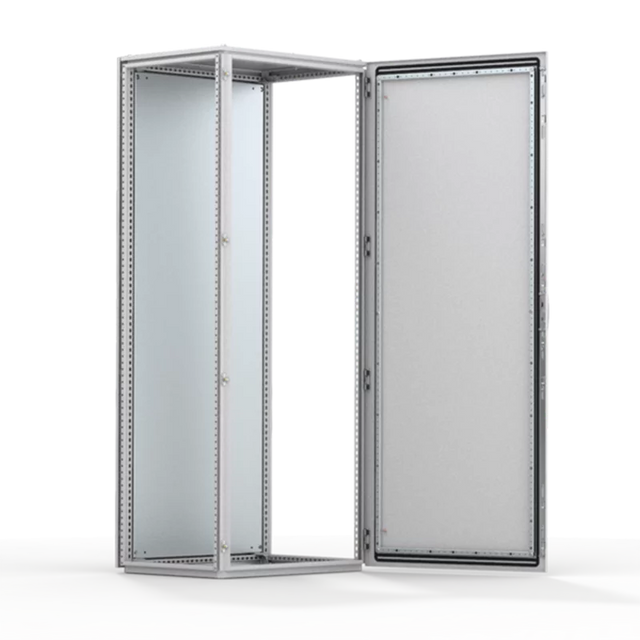

Hoffman MCS20086R5 | Modular Single Door, MCS, 2000x800x600mm, Light Gray, Mild Steel

Hoffman - MCS20086R5 - Features

• Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660 Including integrated external hole pattern
• Door: Mounted with four hinges allowing left or right hand opening; including door frame with 25 mm hole pattern
• Rear panel: Fitted by M6 torx screws; standard facilities for rear door mounting
• Side Panels supplied as an accessory
• Removable roof panel
• Lock: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insert
• Bottom plate: Consists of three or four (D600) pieces
• Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 (supplied as an accessory)
• Earthing/Grounding: All panels are earthed through their fittings and are equipped with a separate earthing stud
• Mounting requirements: Standard delivery ready for combined installation; for stand-alone installation add side panels
• Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame; for 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included; for enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth; delivery also includes earthing bolts
• Mild steel side panels, SPM, need to be ordered separately, to close individual enclosures and enclosure assembly's, to ensure the stated protection degree is achieved.
• BULLETIN NUMBER: FC1
• Industry Standards:
• UL 508A Listed; Type 12; File No. E61997
• cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E61997
• NEMA/EEMAC Type 12
• CSA, File No. 1442951: Type 12
• IEC 62208 IP55
• KEMA, GOST, DNV, CE, EAC
