Hoffman MHB110246G400 | Genesis Top-Mount Indoor, MHB11 2200 BTU 46...
Description
Description

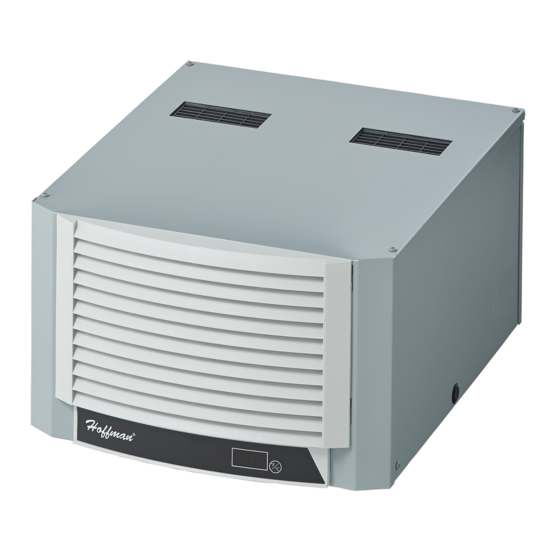

Genesis Top-Mount Indoor Air Conditioners are designed for mounting on top of enclosures. The exterior shrouds are made of low-carbon steel and few visible fasteners to survive rugged factory environments. They include a cleanable, reusable aluminum mesh filter which protects the coils for maximum cooling performance. Standard indoor air conditioners include the electro-mechanical thermostat, surge suppressor and condensate management system on MHB11 models.
Main Features
- R134a and R407c refrigerant
- Models for 115, 230 and 460 single-phase VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12; File No. SA6453
- UR/cUR Recognized
- Maintains U/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure.
- UR/cUR Recognized on select models, reference performance data tables.
- CE
- EAC
Specifications
| Height | 10.25 in / 260.35 mm |
|---|---|
| Width | 17 in / 431.8 mm |
| Depth | 21.08 in / 535.432 mm |
| Nominal Capacity Btu/h | 2200 Btu/h |
| Nominal Capacity Watts | 645 W |
| Nominal Voltage | 460 V |
| Number of Phases | 1 |
| Voltage AC | 400 V |
| Operating Temperature | 50 – 125 °F / 10 – 52 °C |
| Max Current | 2.5 A |
| Protection Rating | NEMA Type 12 |
| Remote Access Control | No |
| BULLETIN NUMBER | MCL |
