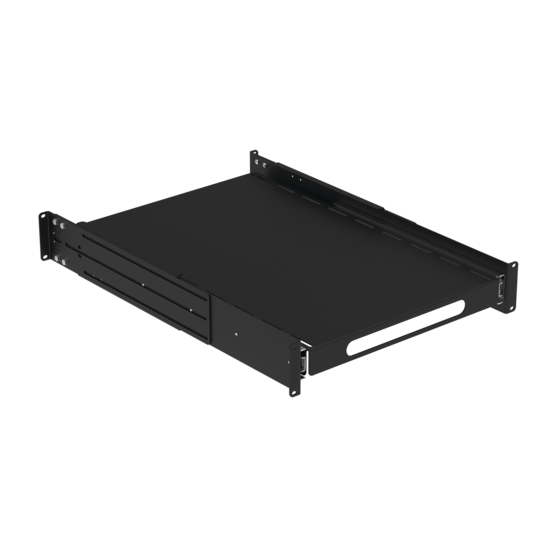

Hoffman P19SHP810B | Rack-Mount Sliding Shelf, 19in, 2U, fits 800-1000, Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman P19SHP810B | Rack-Mount Sliding Shelf, 19in, 2U, fits 800-1...
Description
Description
The Rack-Mount Sliding Shelf allows easy access to shelf-mounted devices. The shelf is 16-gauge steel with 12-gauge steel supports. The shelf mounts to the front surface of front and back rack angles. When mounted directly to a frame, load rating is 150 lb. (68 kg) with four rack angle mountings and 75 lb. (34 kg) with front rack angle mounting. Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately.
Note: only mount shelves in applications with four points of attachment.
Main Features
- Shelf is 16-gauge steel with 12-gauge steel supports
- Mounts to the front surface of front and back rack angles
- Load rating is 150 lb. (68 kg) with four rack angles mounted directly to frame verticals; load rating reduced to 75 lb. (34 kg) with front rack angle mounting only
- Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Max Depth | 41.3 in / 1050 mm |
| Shelf Pullout | 17 in / 432 mm |
| Fits Rack | 19 in. |
| Rack Units | 2 |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 25 lb |
| BULLETIN NUMBER | DACCY |
