Brand: Hoffman
|
SKU:
9888006
Hoffman P2B1105 | ProLine G2 Fully Sealed Plinth (100mm Solid Base), fits 1000x500mm, Black, Steel
Regular price
$523.85
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman P2B1105 | ProLine G2 Fully Sealed Plinth (100mm Solid Base)...
Regular price
$523.85
Unit price
Brand: Hoffman
|
SKU:
9888006
Regular price
$523.85
Unit price
Description
Description

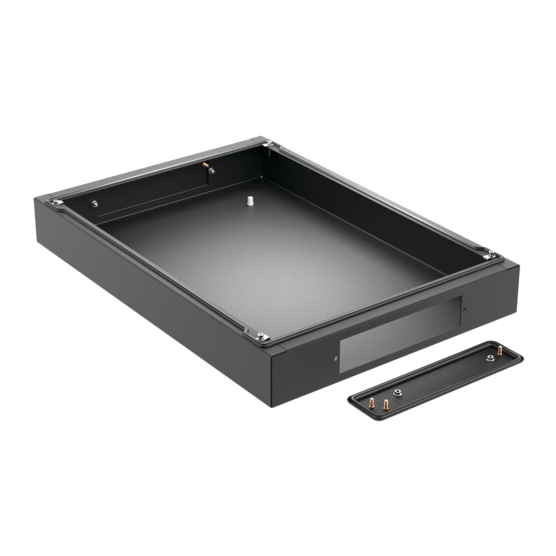

No need to use a gland plate in the base of the enclosure with the Fully-Sealed Plinth Base (100mm Solid Base), which includes fully-sealed gland plates on the sides. Solid bases can easily be joined, for convenient cable management in joined/ganged enclosures while maintaining Type 12 environmental rating.
Main Features
- Maintains NEMA 12 rating without requiring gland plate
- Two side gland plates for cable management options
- Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Optional Cable Entry Gland Plate for additional cable management solutions
- Welded corners
- Drill points for locating casters (not included)
- Installation hardware included
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: P2B188
- Catalog #: P2B186
- Catalog #: P2B168
- Catalog #: P2B166
Specifications
| Height | 3.94 in / 100 mm |
|---|---|
| Width | 18.3 in / 465 mm |
| Depth | 39.3 in / 999 mm |
| Fits Frame | 1000x500 mm |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Material | Mild Steel |
| Thickness | 14 ga / 1.9 mm |
| Weight | 32 lb |
| BULLETIN NUMBER | P40 |
