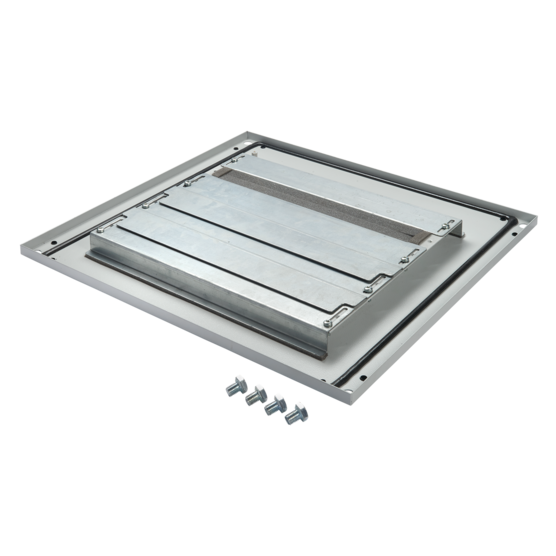

Hoffman P2BGP108G | ProLine G2 Gland Plates, fits 1000x800mm, Galva...
Regular price
$329.31
Unit price
Brand: Hoffman
|
SKU:
9888043
Regular price
$329.31
Unit price
Description
Description
Gland plates are used with a plinth base to provide cable management solutions while maintaining a NEMA 12 rating. ProLine G2's unique Duro-Stand Gland Plate was designed to bear the weight of a person, making it easier to work on the enclosure when the gland plate is installed.
Main Features
- Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
- Sturdy, adjustable gland plates designed to bear the weight of a person
- Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
- Galvanized or painted versions
- Sealed to maintain NEMA Type 12 rating
- Gland Plates are finished with paint over plated surfaces
- Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
- Can be used without a base if casters, levelers or frame feet are installed
- Can be rotated 180 degrees for front or rear cable entry
- Installation hardware included
- Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: P2BGP88G
- Catalog #: P2BGP68G
Specifications
| Fits Frame | 1000x800 mm |
|---|---|
| Gland Plate Quantity | 6 |
| Color | Unpainted |
| Finish | Galvanized |
| Material | Mild Steel |
| Thickness | 14 ga / 1.9 mm |
| Weight | 44 lb |
| BULLETIN NUMBER | P40 |
