Brand: Hoffman
|
SKU:
9888105

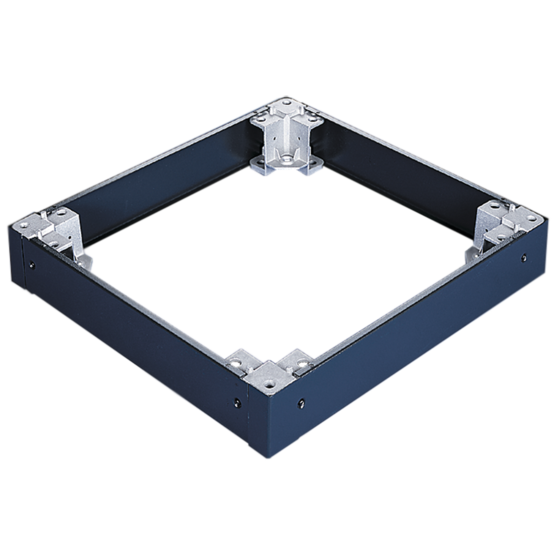

Hoffman P2BP1104 | ProLine G2 100-mm Plinth Bases, fits 1000x400mm, Black, Steel
Regular price
$516.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman P2BP1104 | ProLine G2 100-mm Plinth Bases, fits 1000x400mm,...
Regular price
$516.22
Unit price
Description
Description
ProLine G2 Plinth Bases install under an enclosure to provide space for cables to enter from below.
Main Features
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: P2BP188
- Catalog #: P2BP186
- Catalog #: P2BP168
- Catalog #: P2BP166
- Catalog #: P2BP1126
- Catalog #: P2BP1106
Specifications
| Height | 3.94 in / 100 mm |
|---|---|
| Width | 39.33 in / 999 mm |
| Depth | 14.33 in / 364 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Thickness | 16 ga / 1.52 mm |
| Type | 100mm |
| Fits Frame | 1000x400 mm |
| Weight | 14 lb |
| BULLETIN NUMBER | P40 |
