Brand: Hoffman
|
SKU:
9888132

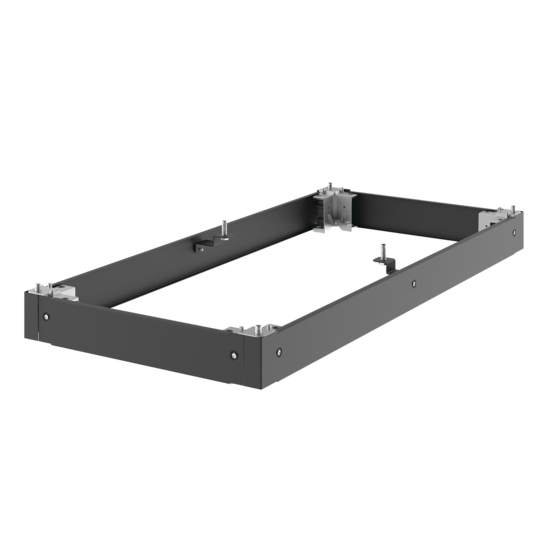

Hoffman P2BP1D124 | ProLine G2 Disconnect Plinth Base, 100mm, fits 1200x400mm, Black, Steel
Regular price
$586.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman P2BP1D124 | ProLine G2 Disconnect Plinth Base, 100mm, fits ...
Regular price
$586.15
Unit price
Description
Description
ProLine G2 Disconnect Components are used with ProLine G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard ProLine G2 components (i.e. ProLine G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Main Features
- Solution for disconnect enclosures widths >1000 mm wide
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
Specifications
Specifications
Specifications
| Fits Frame | 1200 x 400 mm |
|---|---|
| Color | Jet Black |
| Color Code | RAL 9005 |
| Finish | Powder Coated |
| Material | Mild Steel |
| Thickness | 16 ga / 1.52 mm |
| Weight | 13.24 lb |
| BULLETIN NUMBER | P40 |
