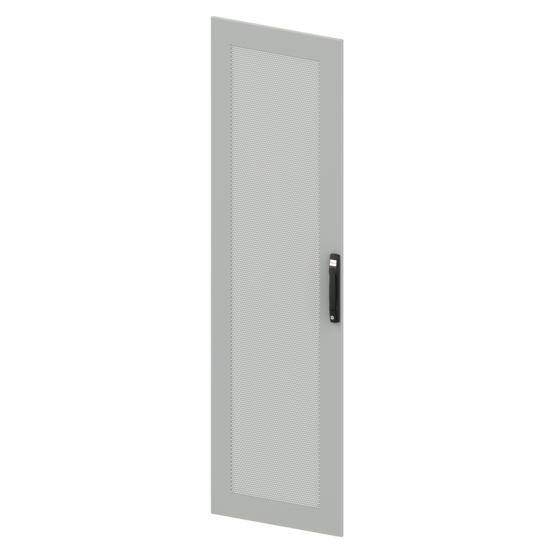

ProLine G2 Perforated Doors (Single or Overlapping Double) can be used on the front or rear of a G2 enclosure to provide ventilation for cooling internal components. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action ensuring a solid door seal with low closure force.
Main Features
- Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
- Flush Swing Handle with key lock; other options available
- Seamless Polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants that could enter at the frame/door junction
- Standard door bar system on all perforated doors for easy accessory attachment
- Timed, 3-point latch engagement to ensure top and bottom of door catch reliably
- Durable, double-flanged latch rod and three Delrin rollers to prevent metal-on-metal grinding
- Single doors can be hinged left or right (default left); overlapping double doors can have the primary door as the left or right (default right)
- 140-degree hinging standard (180-degree hinge option available)
- Two grounding studs
- All mounting hardware included
- Overlapping Double Doors – Additional Specifications: Primary door with Smooth Glide latching system; secondary door has two latch points with a center lever to ensure secure door closure
Specifications
Specifications
Specifications
| Fits Frame | 2000 x 800 mm |
|---|---|
| Door Style | Single |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Material | Mild Steel |
| Thickness | 14 ga / 1.9 mm |
| Weight | 48.98 lb |
| BULLETIN NUMBER | P40 |
