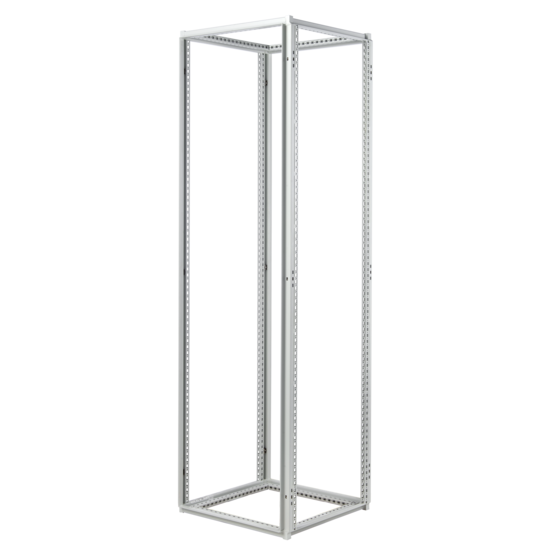

Hoffman P2F2088 | ProLine G2 Frame, 2000x800x800mm, Lt Gray, Steel
Regular price
$1,902.98
Unit price
Description
Description
The ProLine G2 frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to withstand heavier load requirements and to maintain a solid square structure - a solid foundation for the electrical enclosure.
HxWxD are nominal height, width and depth dimensions.
Main Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
- Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Specifications
Specifications
Related Accessories
- Catalog #: P2ACU20
- Catalog #: P2F2088
- Catalog #: P2F2068
Hoffman On Demand Alternatives
- Catalog #: P2F2288
Specifications
| Max Subpanel Size | 1906 x 728 mm / 75.0 x 28.7 in |
|---|---|
| Max Rack Mount Unit | 42 |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Material | Mild Steel |
| Thickness | 12 ga / 2.66 mm |
| Weight | 128 lb |
| BULLETIN NUMBER | P40 |
