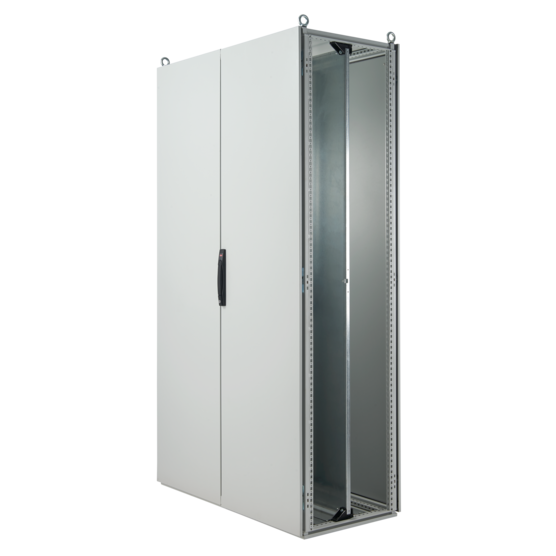

Hoffman P2KOD20105 | ProLine G2 Industrial Packages, Type 12, 2-Dr, 2000x1000x500

Main Features

• 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
• Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
• Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel; enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combination, and can accommodate a mounting subpanel just front of fully-recessed position
• Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant
• Door bar system present on all doors (including window doors)
• Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
• 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
• Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
• Two grounding studs present on each door
• Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
• Galvanized Duro-Stand Gland Plate present
• Mounting subpanel includes EZ-Load Glide Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame); Subpanel is securely fastened to the top and bottom of the frame.
• Enclosures <1200 mm use 4 sets of EZ-Load Glide Blocks; enclosures ?1200 mm use 8 sets of glide blocks for a well-secured subpanel
• Galvanized, full-height subpanel is supplied standard; subpanel is depth adjustable, with back-to-back subpanel configuration possible; white painted subpanel available (sold separately)
• Refer to separate specifications for more complete details of individual components
• Note that side covers are sold separately
