Brand: Hoffman
|
SKU:
9889285

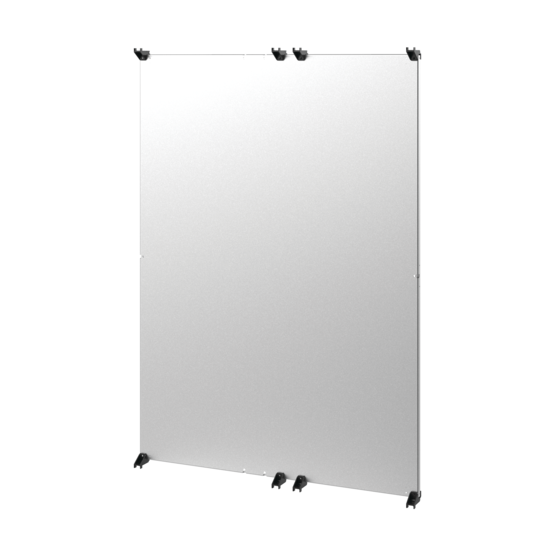

Hoffman P2PD2216G | ProLine G2 Disconnect Mounting Subpanel, 2200x1600, Conductive
Regular price
$1,136.66
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman P2PD2216G | ProLine G2 Disconnect Mounting Subpanel, 2200x1...
Regular price
$1,136.66
Unit price
Brand: Hoffman
|
SKU:
9889285
Regular price
$1,136.66
Unit price
Description
Description
ProLine G2 Disconnect Components are used with ProLine G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard ProLine G2 components (i.e. ProLine G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).
Frame HxW dimensions are nominal mm.
Main Features
- Disconnect specific mounting subpanels are required for frames greater than 1000mm in width; any width 1000mm or less uses a standard mounting subpanel
- 10 gauge (3.0 mm) mild steel; conductive plated option only
- Includes eight sets of EZ-Load Glide Blocks, BV-M6 and Hex Bolts for securing
- Similar in construction and function to the standard mounting subpanel, but with 100mm offset mounting holes near the middle of the subpanel, due to the presence of the disconnect mullion door in the enclosure solution
- Disconnect mounting subpanel comes standard with Disconnect Package
Specifications
Specifications
Specifications
| Fits Frame | 2200 x 1600 mm |
|---|---|
| Color | Unpainted |
| Finish | Galvanized |
| Material | Mild Steel |
| Thickness | 10 ga / 3.4 mm |
| Weight | 160 lb |
| BULLETIN NUMBER | P40 |
