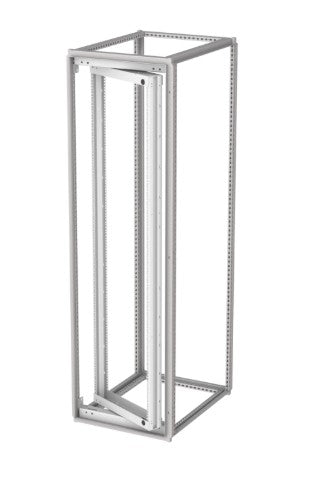

Hoffman P2RSFH208 | ProLine G2 Heavy-Duty Swing-Out Rack Frame, 2000 x 800, Light Gray, Steel

Hoffman - P2RSFH208 - Features

• Three pivot options for maximum flexibility (center, left, right)
• Complies with ANSI/EI A RS-310-D rack-mounting standards
• Mounts to inside of frame at any vertical location; can be located at any depth using grid straps/rail system; deeper mounting affects the degree of opening of swing-out frame
• Rack Frames are available for 600- and 800-mm wide enclosure frames; for 600-mm wide enclosures, the rack frame uses the full width; for 800-mm wide enclosures, there is 200-mm extra width and the rack frame can be installed on either side or in the center
• Can be installed in right, left or both bays of 1200-mm wide frames using center uprights; frame reducing brackets may also be used to accommodate a variety of frame widths
• Center pivot option allows 350-degree rotation; left or right offset option allows 140-degree rotation and swings frame partially out of outer frame; optional hinges allow 170-degree rotation and swing frame completely out of outer frame
