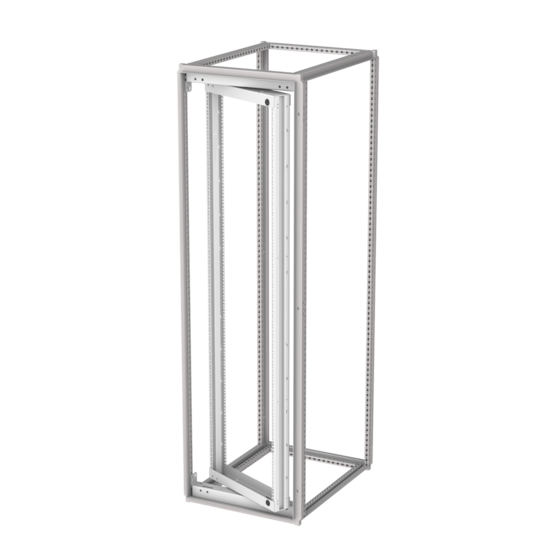

Hoffman P2RSFH228 | ProLine G2 Heavy-Duty Swing-Out Rack Frame, 2200x800, Lt Gray, Steel

Main Features

• Three pivot options for maximum flexibility (center, left, right)
• Complies with ANSI/EI A RS-310-D rack-mounting standards
• Mounts to inside of frame at any vertical location; can be located at any depth using grid straps/rail system; deeper mounting affects the degree of opening of swing-out frame
• Rack Frames are available for 600- and 800-mm wide enclosure frames; for 600-mm wide enclosures, the rack frame uses the full width; for 800-mm wide enclosures, there is 200-mm extra width and the rack frame can be installed on either side or in the center
• Can be installed in right, left or both bays of 1200-mm wide frames using center uprights; frame reducing brackets may also be used to accommodate a variety of frame widths
• Center pivot option allows 350-degree rotation; left or right offset option allows 140-degree rotation and swings frame partially out of outer frame; optional hinges allow 170-degree rotation and swing frame completely out of outer frame
• Has cutouts to mount Frame Tie-Down Brackets (not included) for cable management
• Full-height swing-out rack frames are mounted to the top and bottom of the enclosure frame; smaller swing-out rack frames can be mounted to the vertical frame members or to the grid straps (order separately)
• Furnished with quarter-turn latch, mounting hardware and mounting brackets
• Mounting holes accommodate either English or metric cage nuts, which are ordered separately
