Hoffman P2TMM366 | ProLine G2 Top Mounting Module, Height 300mm, Si...
Description
Description

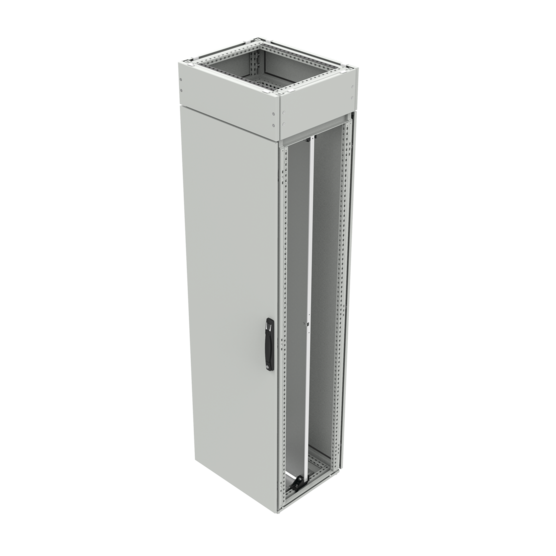

The Top Mounting Module installs to the top of an enclosure providing space for cable management, and facilitating cable passage into the enclosure from above. The module is constructed from a mini ProLine frame, and as such is joinable to accommodate multi-bay solutions. Removable covers are supplied with the module for sealing purposes, while the standard Solid Top (sold separately or included with Industrial Package) is used to enclose the solution as it is mounted to the top of the module.
Main Features
- Solution includes frame, width and depth mounted covers, gaskets for sealing junction between top of frame and module, and all installation hardware to secure to the top of a G2 frame
- Solid Top sold separately, but also included with standard Industrial Package
- 200mm and 300mm heights available
- Includes single ground stud per cover
Specifications
Specifications
Specifications
| Fits Frame Type | Single Bay |
|---|---|
| Fits Frame | 600 x 600 mm / 23.62 x 23.62 in |
| Thickness | 1.5 mm / 16 ga |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Material | Mild Steel |
| Weight | 50.46 lb |
| BULLETIN NUMBER | P40 |
