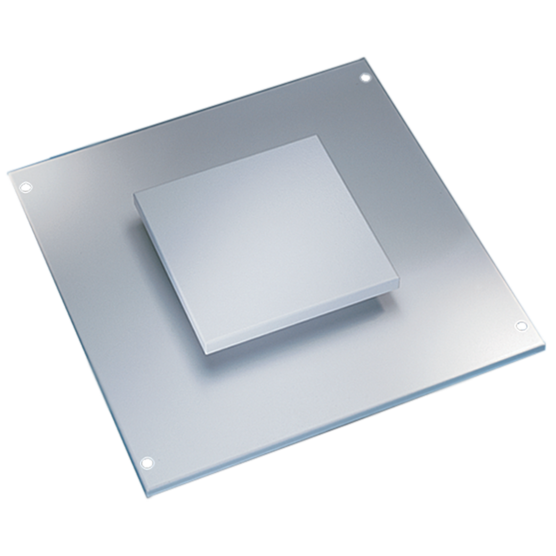

Hoffman P2TP88 | ProLine G2 Pagoda Tops, fits 800x800mm, Painted
Regular price
$939.09
Unit price
Brand: Hoffman
|
SKU:
983364
Regular price
$939.09
Unit price
Description
Description
Pagoda tops can be used on the top of a modular enclosure for active cooling. The design features a drip-proof raised pagoda vent with a 115-volt integral axial exhaust fan, and includes gasket seals to maintain a NEMA 12 enclosure rating.
Main Features
- Maintains NEMA 12 Type rating on enclosure when installed
- Drip-protected, raised pagoda vent
- Integral axial exhaust fan for active cooling
- Pagoda Tops 1200 mm and greater in width have one drip protected, raised pagoda vent opening positioned over one side that can be oriented for right or left ventilation
- Seamless polyurethane gasket between top and frame (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
- Includes four M12 hex bolts for installation
- Lifting eyes (not included) can be used instead of bolts
Specifications
Specifications
Specifications
| Fits Frame | 800x800 mm |
|---|---|
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Material | Mild Steel |
| Thickness | 14 ga / 1.9 mm |
| Weight | 34 lb |
| BULLETIN NUMBER | P40 |
