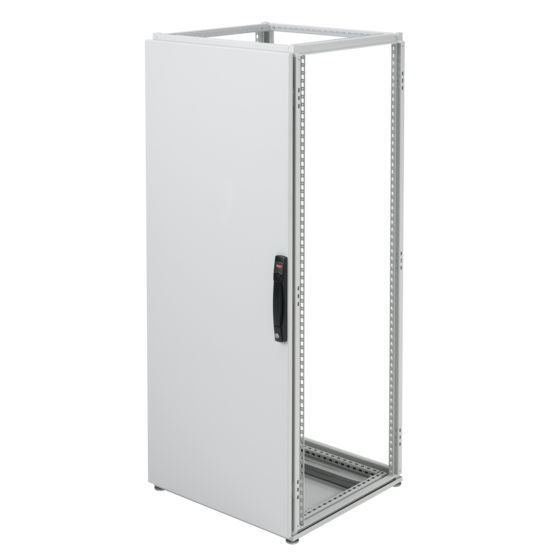

Hoffman PDS207 | Solid Doors, fits 2000x700mm, Painted
Regular price
$888.55
Unit price
Brand: Hoffman
|
SKU:
653379
Regular price
$888.55
Unit price
Description
Description
Solid Doors include a removable door bar system on doors taller than 700 mm and wider than 400 mm. Hinge side is reversible. A flush bezel latch operates the 3-point latching system. Doors for 700-mm frames have 2-point latching. Hidden hinges (130-degree swing) permit attachment to the front or back of each enclosure frame. The use of a side-door adapter or a cable entry cabinet allows doors to be attached to the sides of the enclosure frame.
Main Features
- EMC doors are finished with paint over plated surfaces
- Optional data pockets, door stops, grounding kits and 180-degree hinges are available
- Hinges have easy slide retained hinge pins
- Door gasket is foam-in-place urethane to provide a resilient, seamless seal
- Two grounding studs are furnished. All mounting hardware is included
Specifications
Specifications
Related Accessories
- Catalog #: LEDPUCK
Specifications
| Material | Mild Steel |
|---|---|
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 16 ga / 1.52 mm |
| Dimensions | 1939 x 692 mm / 76.34 x 27.24 in |
| Fits Frame | 2000 x 700 mm |
| Door Type | Steel |
| Weight | 57 lb |
| BULLETIN NUMBER | P20 |
