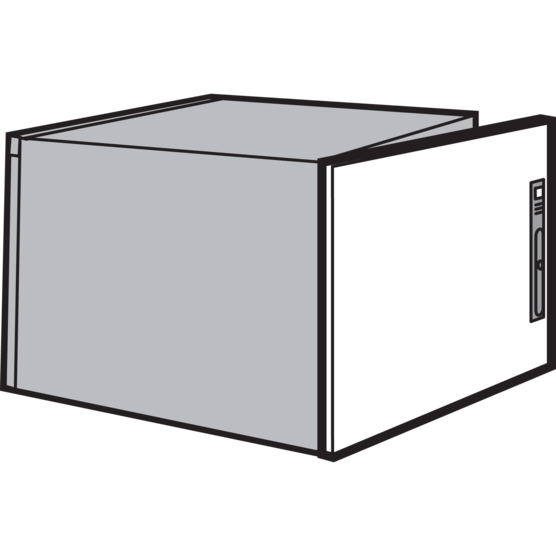

Hoffman PDS5A8R | Doors for Rear of ProLine Sloped Tops, fits 682x8...
Description
Description
Rear doors are side-hinged. The hinges are hidden and provide 130-degree door swing. Optional ProLine 180-Degree Hinge Kit is available. Doors can be hinged from left or right. Door includes two-point latching with a flush slotted quarter-turn insert. Standard ProLine handle and insert options are available for retrofit. Use ProLine Frame Shelf or ProLine Grid Straps to support the operator interface. Ground stud and mounting hardware are included. Seamless foam-in-place gasket assures a watertight and dust-tight seal.
Main Features
- Side hinged doors with 130-degree swing
- Seamless foam in place gasket
Specifications
Specifications
Specifications
| Height | 19.69 in / 500 mm |
|---|---|
| Width | 31.5 in / 800 mm |
| Depth | 22.23 in / 565 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 16 ga / 1.52 mm |
| Door Size | 679 x 792 mm / 26.75 x 31.17 in |
| Weight | 24 lb |
| BULLETIN NUMBER | P9 |
