Hoffman PDW166 | ProLine Window Doors, fits 1600x600mm, Aluminum, P...
Regular price
$1,550.49
Unit price
Brand: Hoffman
|
SKU:
653437
Regular price
$1,550.49
Unit price
Description
Description

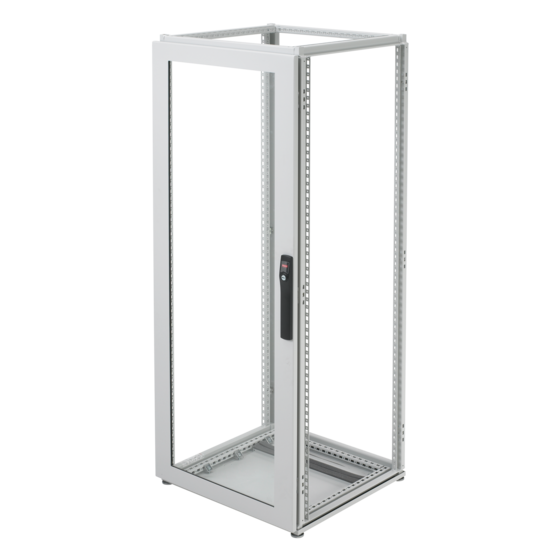

Window Doors can be used on the front or rear of ProLine frames to provide viewing of electronic equipment. ProLine Window Doors are designed around a mild steel profile. They have 140-degree hidden hinges and a flush bezel latch that operates a 3-point latching mechanism (doors for 700-mm frames have 2-point latching). Doors have either a smoke-gray tinted polycarbonate or a clear safety glass window; 180-degree hinges are available (order separately).
Main Features
- Install easily on front or rear of enclosure frame; can be hinged on left or right
- Have two grounding brackets
- Have a .25-in.-thick window that provides maximum protection and viewing area
- Have foam-in-place urethane gaskets for door and window to provide optimum sealing
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Window Size | 1418 x 446 mm / 55.81 x 17.55 in |
| Fits Frame | 1600 x 600 mm |
| Window Door Type | Mild Steel and Polycarbonate |
| Safety Glass | 1539 x 593 mm / 60.59 x 23.34 in |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 32.26 lb |
| BULLETIN NUMBER | P20 |
