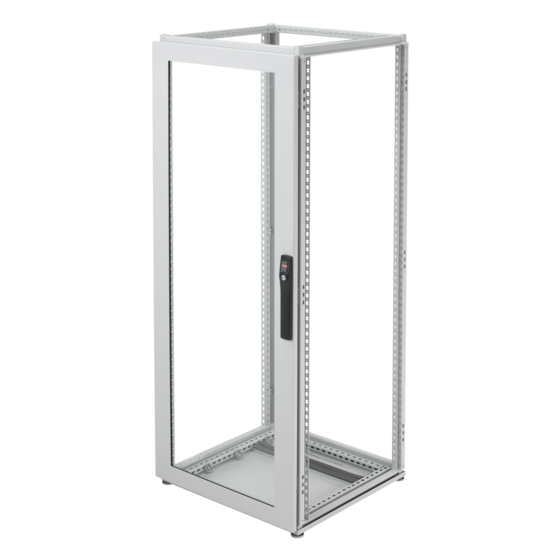

Hoffman PDW188 | ProLine Window Doors, fits 1800x800mm, Aluminum, P...
Regular price
$1,903.10
Unit price
Brand: Hoffman
|
SKU:
653439
Regular price
$1,903.10
Unit price
Description
Description
Window Doors can be used on the front or rear of ProLine frames to provide viewing of electronic equipment. ProLine Window Doors are designed around a mild steel profile. They have 140-degree hidden hinges and a flush bezel latch that operates a 3-point latching mechanism (doors for 700-mm frames have 2-point latching). Doors have either a smoke-gray tinted polycarbonate or a clear safety glass window; 180-degree hinges are available (order separately).
Main Features
- Install easily on front or rear of enclosure frame; can be hinged on left or right
- Have two grounding brackets
- Have a .25-in.-thick window that provides maximum protection and viewing area
- Have foam-in-place urethane gaskets for door and window to provide optimum sealing
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Window Size | 1618 x 646 mm / 63.69 x 25.42 in |
| Fits Frame | 1800 x 800 mm |
| Window Door Type | Mild Steel and Polycarbonate |
| Safety Glass | 1739 x 793 mm / 68.46 x 31.22 in |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 46 lb |
| BULLETIN NUMBER | P20 |
