Hoffman PDWG206SS | ProLine Window Doors, fits 2000x600mm, SS 304, ...
Regular price
$7,206.34
Unit price
Brand: Hoffman
|
SKU:
653466
Regular price
$7,206.34
Unit price
Description
Description

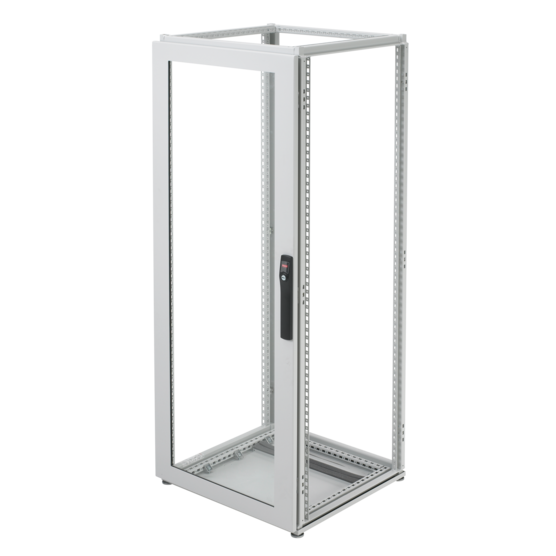

Window Doors can be used on the front or rear of ProLine frames to provide viewing of electronic equipment. ProLine Window Doors are designed around a mild steel profile. They have 140-degree hidden hinges and a flush bezel latch that operates a 3-point latching mechanism (doors for 700-mm frames have 2-point latching). Doors have either a smoke-gray tinted polycarbonate or a clear safety glass window; 180-degree hinges are available (order separately).
Main Features
- Install easily on front or rear of enclosure frame; can be hinged on left or right
- Have two grounding brackets
- Have a .25-in.-thick window that provides maximum protection and viewing area
- Have foam-in-place urethane gaskets for door and window to provide optimum sealing
Specifications
Specifications
Specifications
| Material | Stainless Steel 304 |
|---|---|
| Window Size | 1818 x 446 mm / 71.56 x 17.55 in |
| Fits Frame | 2000 x 600 mm |
| Window Door Type | Stainless Steel and Safety Glass |
| Safety Glass | 1939 x 592 mm / 76.34 x 23.30 in |
| Color | Unpainted |
| Finish | Brushed |
| Thickness | 14 ga / 1.9 mm |
| Weight | 55.5 lb |
| BULLETIN NUMBER | P20S |
