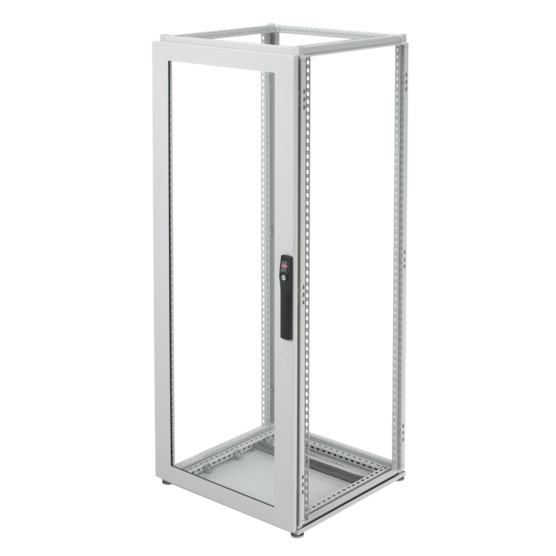

Hoffman PDWG76SS | ProLine Window Doors, fits 700x600mm, SS 304, Glass
Description
Description
Window Doors can be used on the front or rear of ProLine frames to provide viewing of electronic equipment. ProLine Window Doors are designed around a mild steel profile. They have 140-degree hidden hinges and a flush bezel latch that operates a 3-point latching mechanism (doors for 700-mm frames have 2-point latching). Doors have either a smoke-gray tinted polycarbonate or a clear safety glass window; 180-degree hinges are available (order separately).
Main Features
- Install easily on front or rear of enclosure frame; can be hinged on left or right
- Have two grounding brackets
- Have a .25-in.-thick window that provides maximum protection and viewing area
- Have foam-in-place urethane gaskets for door and window to provide optimum sealing
Specifications
Specifications
Specifications
| Material | Stainless Steel 304 |
|---|---|
| Window Size | 518 x 446 mm / 20.38 x 17.55 in |
| Fits Frame | 700 x 600 mm |
| Window Door Type | Stainless Steel and Safety Glass |
| Safety Glass | 639 x 592 mm / 25.16 x 23.30 in |
| Color | Unpainted |
| Finish | Brushed |
| Thickness | 14 ga / 1.9 mm |
| Weight | 20 lb |
| BULLETIN NUMBER | P20S |
